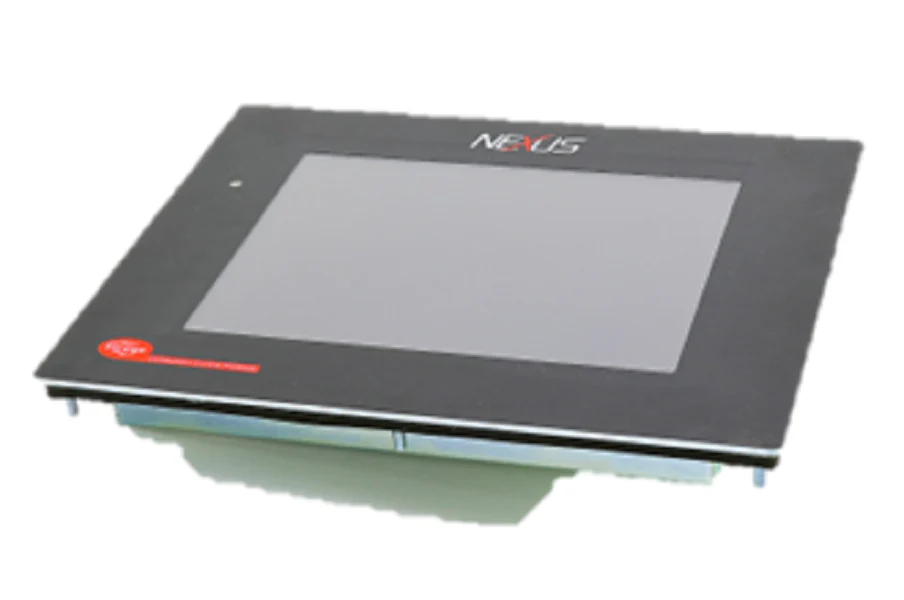

Fireye NXTSD104 Touch Screen Display
The Fireye NXTSD104 is a 10.4-inch high-resolution touch screen display engineered for seamless integration with Fireye NX6100 and PPC6000 fuel-to-air ratio controllers. Designed for industrial burner management systems, this NEMA 4X rated interface provides a rugged platform for real-time monitoring and parameter adjustment. It utilizes the Modbus RTU protocol via an RS-485 serial connection, ensuring reliable data transmission between the HMI and the controller. The NXTSD104 features a high-brightness LED backlit screen, making it visible in mechanical rooms with varying light levels. It simplifies complex burner configurations by providing clear visual feedback on flame signal strength, firing rate, and system faults. The capacitive touch interface is built to withstand harsh environments, allowing technicians to troubleshoot and optimize combustion efficiency without requiring external diagnostic tools. This display is essential for modernizing boiler plant operations and ensuring precise control over the Nexus integrated controller platform.
Key Benefits for Technicians- Enhanced Visual Diagnostics: Real-time mapping of fuel-air curves and system status for faster commissioning.
- Industrial Durability: The NEMA 4X enclosure rating protects against dust, moisture, and corridor-related debris.
- Seamless Integration: Direct serial communication with Fireye Nexus systems eliminates the need for third-party gateways.
- High-Resolution Interface: 10.4-inch screen allows for detailed viewing of complex technical data and alarm history.
- User-Friendly Calibration: Streamlines the process of adjusting setpoints and monitoring O2 trim values.
Is the NXTSD104 compatible with older Nexus controllers?
The NXTSD104 is specifically optimized for use with the NX6100 and PPC6000 series. Ensure your firmware version supports the color touch screen interface before installation.
What are the power requirements for this display?
The unit typically operates on 24VDC, which maintains consistency across most Fireye burner control cabinet layouts.
Does this display require special software for setup?
No, the Fireye NXTSD104 is plug-and-play via the serial port once the controller's communication settings are correctly addressed to the HMI.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $6,449.43
-65%$6,449.43
$2,257.30Fireye NXTSD104 Touch Screen Display
