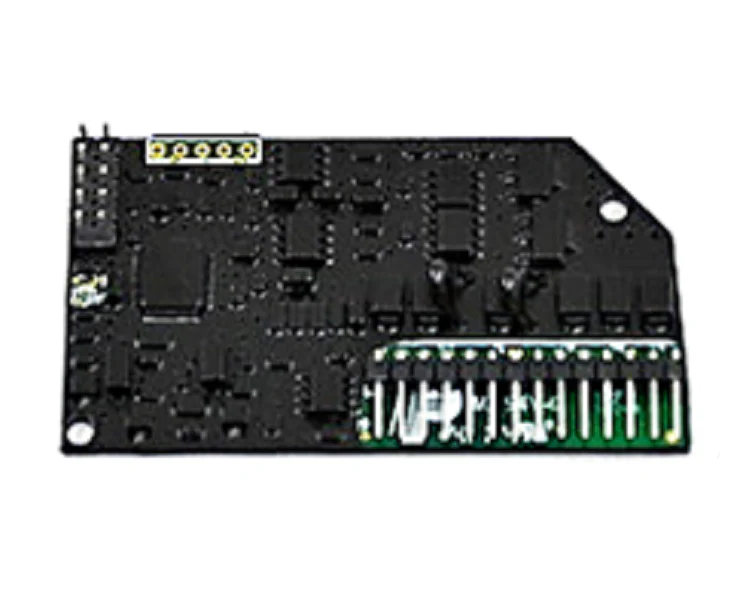

Fireye NXCESVFD VFD Expansion Card
The Fireye NXCESVFD VFD Expansion Card is a critical hardware component designed specifically for integration with the NexSys PPC4000 fuel-air ratio controller. This expansion module allows technicians to implement Variable Frequency Drive (VFD) control for combustion blower motors, enabling precise modulation and significant energy savings. By utilizing the Modbus communication protocol via the dedicated serial interface, the NXCESVFD provides real-time feedback and control of motor RPM speed, ensuring the burner operates at peak efficiency across the entire firing rate. This board slides directly into the PPC4000 chassis, facilitating a clean installation without the need for external signal converters.
Technical Benefits
- Enables closed-loop VFD control for precise combustion air management.
- Reduces electrical parasitic load by optimizing blower motor speeds during low-fire operation.
- Provides digital speed feedback to ensure compliance with safety interlock requirements.
- Simplifies PPC4000 commissioning through integrated software configuration menus.
- Robust construction designed for industrial boiler room environments.
Commonly Asked Questions
Does this card support HVAC fan motors?
The NXCESVFD is specifically engineered for combustion air blowers managed by the Fireye NexSys system and is not a general-purpose VFD controller.
How do I configure the VFD parameters?
All Modbus registers and speed parameters are configured through the PPC4000 touchscreen interface or the NX610 display once the expansion card is seated.
Is an external encoder required for speed sensing?
While the card facilitates communication, many VFD-ready burners utilize the internal encoder feedback from the drive itself, which this card monitors via the NXCESVFD communication bus.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
