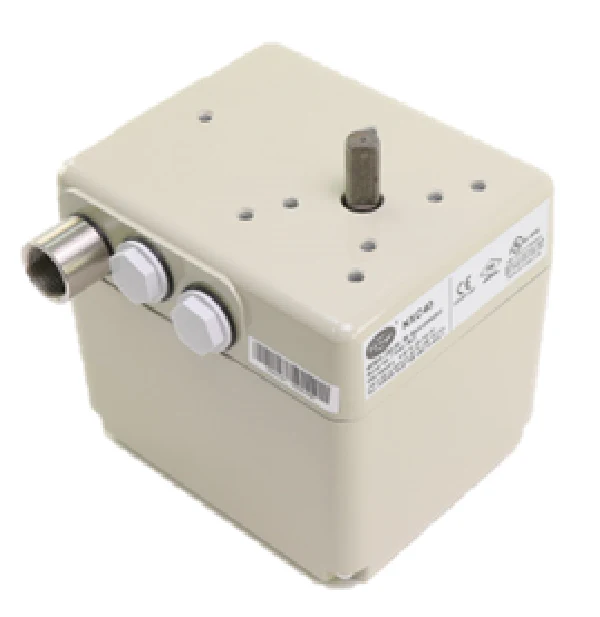

Fireye NXC40 Motor
The Fireye NXC40 is a high-torque industrial servo motor engineered for precision fuel-air ratio control in advanced burner management systems. Designed to interface seamlessly with the Fireye NX6100 CANbus parallel positioning system, this actuator provides the high-fidelity feedback required for industrial boilers and commercial HVAC applications. With a robust driving torque of 40 Nm (29.5 ft-lbs) and a holding torque of 18 Nm, the NXC40 ensures stable positioning of dampers and valves even under variable pressure loads. The unit features an IP65-rated enclosure and is NEMA 4 compliant, making it suitable for demanding environments with temperatures ranging from -20??C to 60??C. This 24 VAC modulating motor delivers a 90-degree rotation in 30 seconds, utilizing internal microswitches for precise open and close limit detection. For technicians seeking a reliable CANbus actuator replacement, the NXC40 offers the specialized performance needed to maintain optimal combustion efficiency and system uptime.
Key Benefits:
- High Torque Output: Delivers 40 Nm of driving torque to handle heavy-duty dampers and high-pressure valve applications.
- CANbus Integration: Engineered for plug-and-play compatibility with Fireye Nexus controllers via a 4-wire digital communication link.
- Rugged Environmental Protection: Features an IP65 / NEMA 4 aluminum housing to withstand moisture, dust, and extreme boiler room temperatures.
- Precision Accuracy: Provides typical positioning accuracy of ??0.1?? to ensures repeatable, high-efficiency burner performance.
Common Questions:
Is the Fireye NXC40 compatible with the NX6100 series?
Yes, the NXC40 is specifically designed for the Fireye NX6100 and NX6300 series, utilizing CANbus communication for precise parallel positioning control.
What is the torque rating for the NXC40 servo?
The NXC40 provides a driving torque of 40 Nm (approximately 29.5 ft-lbs) and a holding torque of 18 Nm, making it the highest-capacity motor in the NXC series.
Does this motor require a separate power supply?
The NXC40 operates on 24 VAC (50/60 Hz) and typically draws 18 VA, which is supplied through the system infrastructure according to standard burner control wiring diagrams.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $2,247.84
-65%$2,247.84
$786.74Fireye NXC40 Motor
The Fireye NXC40 is a high-torque industrial servo motor engineered for precision fuel-air ratio control in advanced burner management systems. Designed to interface seamlessly with the Fireye NX6100 CANbus parallel positioning system, this actuator provides the high-fidelity feedback required for industrial boilers and commercial HVAC applications. With a robust driving torque of 40 Nm (29.5 ft-lbs) and a holding torque of 18 Nm, the NXC40 ensures stable positioning of dampers and valves even under variable pressure loads. The unit features an IP65-rated enclosure and is NEMA 4 compliant, making it suitable for demanding environments with temperatures ranging from -20??C to 60??C. This 24 VAC modulating motor delivers a 90-degree rotation in 30 seconds, utilizing internal microswitches for precise open and close limit detection. For technicians seeking a reliable CANbus actuator replacement, the NXC40 offers the specialized performance needed to maintain optimal combustion efficiency and system uptime.
Key Benefits:
- High Torque Output: Delivers 40 Nm of driving torque to handle heavy-duty dampers and high-pressure valve applications.
- CANbus Integration: Engineered for plug-and-play compatibility with Fireye Nexus controllers via a 4-wire digital communication link.
- Rugged Environmental Protection: Features an IP65 / NEMA 4 aluminum housing to withstand moisture, dust, and extreme boiler room temperatures.
- Precision Accuracy: Provides typical positioning accuracy of ??0.1?? to ensures repeatable, high-efficiency burner performance.
Common Questions:
Is the Fireye NXC40 compatible with the NX6100 series?
Yes, the NXC40 is specifically designed for the Fireye NX6100 and NX6300 series, utilizing CANbus communication for precise parallel positioning control.
What is the torque rating for the NXC40 servo?
The NXC40 provides a driving torque of 40 Nm (approximately 29.5 ft-lbs) and a holding torque of 18 Nm, making it the highest-capacity motor in the NXC series.
Does this motor require a separate power supply?
The NXC40 operates on 24 VAC (50/60 Hz) and typically draws 18 VA, which is supplied through the system infrastructure according to standard burner control wiring diagrams.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
