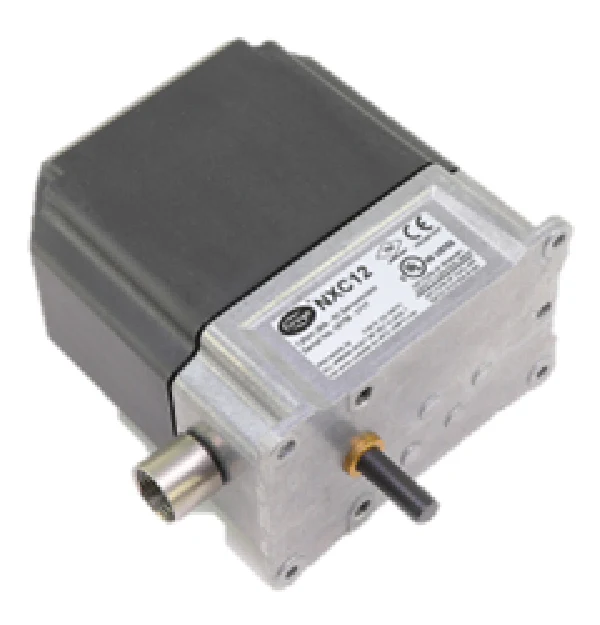

Fireye NXC12 Servo Motor
The Fireye NXC12 is a high-precision parallel positioning servo motor engineered for integration with Nexus and NXF4000 series flame safeguard controllers. Operating at 24VDC, this industrial actuator delivers 12.5 Nm (approx. 110 lb-ft) of torque, providing the necessary force for precise air and fuel modulation in high-demand combustion systems. The NXC12 utilizes a CANbus communication protocol, allowing for seamless digital synchronization between the fuel valve and air damper without the mechanical hysteresis common in traditional jackshaft linkages. This direct-drive servo features a 100% duty cycle and consistent 30-second travel time for 90 degrees of rotation, ensuring stable fuel-to-air ratios across the entire firing rate. Rated for hazardous environments with an IP65 enclosure, the NXC12 provides reliable feedback to the Nexus burner controller, maintaining optimal combustion efficiency and reducing O2 fluctuations in complex steam and hot water boiler applications.
- NEMA 4 / IP65 Rated: Built to withstand harsh mechanical rooms and outdoor installations, protecting internal gear trains from moisture and debris.
- High-Torque Performance: Delivers 110 lb-in of torque, making it suitable for large-diameter butterflies and heavy-duty dampers.
- Precise Modulation: Eliminates mechanical slack to maintain exact positioning within ??0.1 degrees for peak AEO-optimized efficiency.
- Simplified Wiring: Uses a 4-pin quick-connect harness for rapid installation and integration into existing Fireye Nexus networks.
Common Questions
How do I address a positioning error on the Fireye NXC12?
Positioning errors usually stem from mechanical binding or signal interference on the CANbus line. Ensure the linkage is free from obstruction and verify that the 24VDC power supply is delivering clean, consistent voltage without excessive noise.
Is the Fireye NXC12 interchangeable with the NXC04 or NXC20?
While they share communication protocols, the NXC12 is specified based on torque requirements. Ensure your damper or valve does not exceed 110 lb-in of resistance; otherwise, you may need to upgrade to the NXC20 to avoid stalling the motor.
Does this servo require a separate power supply?
The NXC12 is typically powered through the Nexus controller's internal bus; however, in systems with multiple servos, a dedicated 24VDC power supply may be required to prevent voltage drops across the network.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $1,057.66
-65%$1,057.66
$370.18Fireye NXC12 Servo Motor
The Fireye NXC12 is a high-precision parallel positioning servo motor engineered for integration with Nexus and NXF4000 series flame safeguard controllers. Operating at 24VDC, this industrial actuator delivers 12.5 Nm (approx. 110 lb-ft) of torque, providing the necessary force for precise air and fuel modulation in high-demand combustion systems. The NXC12 utilizes a CANbus communication protocol, allowing for seamless digital synchronization between the fuel valve and air damper without the mechanical hysteresis common in traditional jackshaft linkages. This direct-drive servo features a 100% duty cycle and consistent 30-second travel time for 90 degrees of rotation, ensuring stable fuel-to-air ratios across the entire firing rate. Rated for hazardous environments with an IP65 enclosure, the NXC12 provides reliable feedback to the Nexus burner controller, maintaining optimal combustion efficiency and reducing O2 fluctuations in complex steam and hot water boiler applications.
- NEMA 4 / IP65 Rated: Built to withstand harsh mechanical rooms and outdoor installations, protecting internal gear trains from moisture and debris.
- High-Torque Performance: Delivers 110 lb-in of torque, making it suitable for large-diameter butterflies and heavy-duty dampers.
- Precise Modulation: Eliminates mechanical slack to maintain exact positioning within ??0.1 degrees for peak AEO-optimized efficiency.
- Simplified Wiring: Uses a 4-pin quick-connect harness for rapid installation and integration into existing Fireye Nexus networks.
Common Questions
How do I address a positioning error on the Fireye NXC12?
Positioning errors usually stem from mechanical binding or signal interference on the CANbus line. Ensure the linkage is free from obstruction and verify that the 24VDC power supply is delivering clean, consistent voltage without excessive noise.
Is the Fireye NXC12 interchangeable with the NXC04 or NXC20?
While they share communication protocols, the NXC12 is specified based on torque requirements. Ensure your damper or valve does not exceed 110 lb-in of resistance; otherwise, you may need to upgrade to the NXC20 to avoid stalling the motor.
Does this servo require a separate power supply?
The NXC12 is typically powered through the Nexus controller's internal bus; however, in systems with multiple servos, a dedicated 24VDC power supply may be required to prevent voltage drops across the network.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
