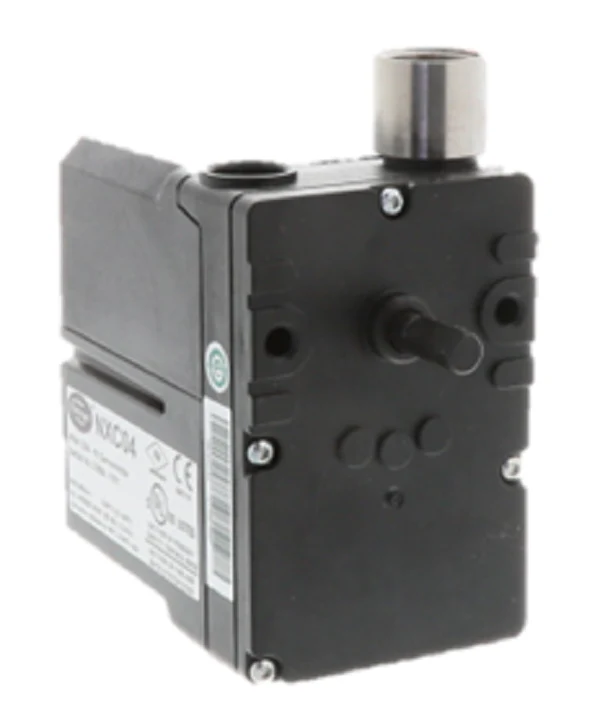

Fireye NXC04 Motor
The Fireye NXC04 is a high-precision 4-wire CANbus servo motor engineered for seamless integration with the Nexus NX6100 parallel positioning system. Designed to provide accurate fuel and air ratio control, this industrial actuator delivers a consistent 3 ft-lbs (4 Nm) torque output, ensuring stable valve and damper positioning in high-demand burner applications. Operating on 24VAC (50/60 Hz), the NXC04 motor utilizes an internal encoder for continuous position feedback to the main controller, maintaining tight tolerances within the combustion loop to maximize thermal efficiency.
For contractors and technicians, the rugged NEMA 1 enclosure and wide temperature rating (32??F to 140??F) make the Fireye NXC04 servo a reliable choice for boiler room environments. Its 15-second running time for a 90-degree rotation allows for rapid response to load changes, while the integrated auxiliary switches provide essential open and close position verification. Whether you are performing a new installation or replacing a failed unit, this brushless servo offers the durability required for 24/7 industrial automation and flame safeguard operations.
Key Benefits for Technicians:- Digital Precision: CANbus communication eliminates the hysteresis and drift associated with traditional analog linkages.
- High Torque Reliability: Rated at 4 Nm torque, providing sufficient force for standard fuel-to-air ratio control valves.
- Simplified Wiring: The 4-wire CANbus interface reduces field wiring complexity and commissioning time.
- Feedback Accuracy: Internal encoder ensures the NX6100 controller detects precise shaft positioning at all times.
- Industrial Grading: Designed to withstand the thermal stressors of combustion control environments.
Is the NXC04 compatible with my existing Nexus controller?
The NXC04 is specifically designed for use with the Fireye Nexus NX6100 and related CANbus-capable burner management systems. It is not a direct drop-in for 120V Modutrol motors without a control system upgrade.
What is the difference between the NXC04 and NXC12?
The NXC04 is the 3 ft-lb (4 Nm) version, while the NXC12 offers higher torque (9 ft-lb / 12 Nm). Always verify the torque requirements of your specific valve or damper before installation to avoid stalling or gear damage.
Can this motor be mounted in any orientation?
Yes, the NXC04 can be mounted in various orientations; however, ensuring properly aligned linkages is critical to preventing side-loading on the motor shaft, which can lead to premature mechanical failure.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $772.14
-65%$772.14
$270.25Fireye NXC04 Motor
