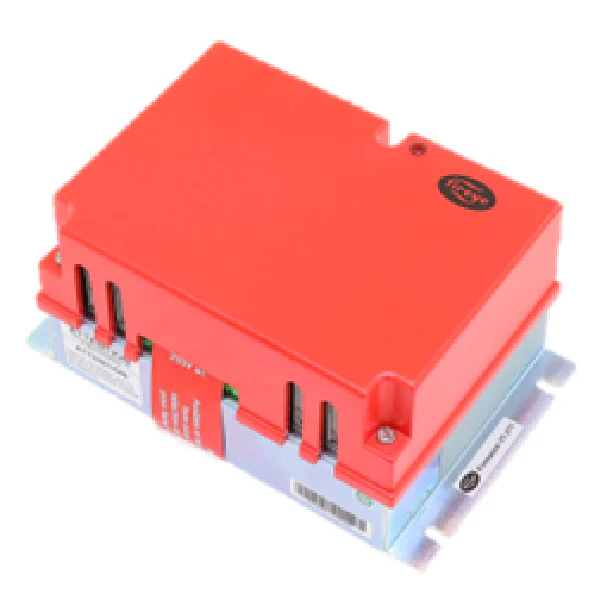

Fireye NX6100 Control
The Fireye NX6100 Control is a sophisticated parallel positioning system engineered for precise ratio control in industrial and commercial burner applications. Designed to replace traditional mechanical linkages, the NX6100 utilizes independent servo motors to manage fuel and air flow, significantly reducing hysteresis and improving combustion efficiency. This controller supports up to ten programmable profiles, allowing for optimized firing across the entire modulation range. Its integrated oxygen trim capability, when paired with an O2 probe, ensures consistent performance despite fluctuations in ambient temperature or fuel BTU content. For technicians, the Fireye NX6100 simplifies commissioning through a user-friendly interface and provides detailed diagnostics for rapid troubleshooting. Built for boiler room automation, this unit integrates seamlessly with VFD control for combustion air fans, further reducing electrical consumption and enhancing overall system turndown ratio. This is a critical component for contractors focused on maximizing thermal efficiency and meeting stringent emission requirements.
Key Technical Benefits:
- Precision Modulation: Eliminates mechanical slop by using digital servo actuators for exacting air-to-fuel ratio control.
- VFD Integration: Native support for variable frequency drives to optimize fan speed and reduce energy costs.
- Dual Fuel Capability: Manages complex multi-fuel burner setups with dedicated profiles for different fuels.
- Enhanced Safety: Includes integrated flame safeguard logic and extensive fail-safe monitoring.
- Diagnostic Reporting: Real-time data logging for flame signal strength, setpoints, and error codes to minimize downtime.
Common Installation & Operation Questions:
Can the NX6100 control multiple servo motors simultaneously?
Yes, the system is designed to manage up to four Fireye NXC series servos (fuel, air, and auxiliary) to maintain precise parallel positioning.
Does this unit support Modbus communication for BMS integration?
Properly configured, the NX6100 facilitates remote monitoring and control via Modbus protocols, allowing for seamless integration into a Building Management System.
What is required for the O2 trim functionality to work?
You must install a compatible zirconia oxygen probe and the NX6083 phase modules to enable real-time combustion trim adjustments.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $2,984.37
-65%$2,984.37
$1,044.53Fireye NX6100 Control
