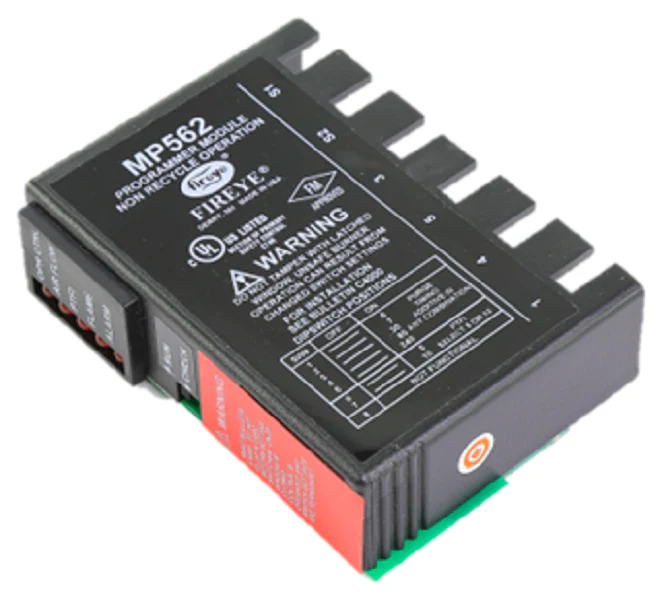

Fireye MP562 Module
The Fireye MP562 Module is a high-performance, non-recycle program module w/lockout designed specifically for the Fireye M-Series II flame safeguard system. Engineered for commercial and industrial burner management, this plug-in component provides critical combustion control by managing the ignition sequence and continuous flame monitoring. The Fireye MP562 is distinguished by its lockout on loss of airflow logic, ensuring a permanent safety shutdown that requires a manual reset if the air pressure switch opens during the burner cycle. Technicians can utilize the integrated check-run switch to facilitate pilot stabilization testing and flame signal strength verification without advancing to the main flame trial. This module supports selectable purge timing and pilot trial-for-ignition (PTFI) settings via internal dipswitches, allowing for precise field configuration to meet specific boiler or furnace requirements. The rugged microprocessor-based design ensures reliable operational sequencing in demanding HVACR environments, maintaining backward compatibility with standard Fireye M-Series wiring bases and chassis.
Key Benefits- Enhanced Safety Logic: Features a non-recycle programmed sequence that forces a safety lockout upon any loss of airflow or flame failure, preventing unsafe automatic restarts.
- Field Adjustability: Integrated dipswitches allow for the customization of purge timing and ignition trials to match industrial burner specifications.
- Simplified Commissioning: The manual check-run switch permits the technician to freeze the sequence during the pilot trial, ensuring the flame signal is established and stable.
- Diagnostic Reliability: On-board LED indicators provide immediate visual feedback on the control status and help rapidly identify the cause of system lockouts.
- Standardized Integration: Modular plug-in architecture fits seamlessly into MC120 and MC230 chassis for quick installation and replacement.
Is the Fireye MP562 interchangeable with the MP560?
While both belong to the M-Series II, the MP562 is a non-recycle module that includes an additional lockout on loss of airflow feature. If your application requires a manual reset after an airflow interruption, the MP562 is the correct specification.
How do I configure the purge timing on this module?
Timing is set via internal dipswitches located on the side of the module. These settings must be configured before installation, as the logic is typically locked into the eeprom after 8 hours of continuous operation.
What flame scanners are compatible with this programmer?
Compatibility is determined by the amplifier module used in the chassis. The MP562 functions as the sequence programmer and works in tandem with UV, infrared, or flame rod amplifiers within the MicroM and M-Series II infrastructure.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Fireye MP562 Module
The Fireye MP562 Module is a high-performance, non-recycle program module w/lockout designed specifically for the Fireye M-Series II flame safeguard system. Engineered for commercial and industrial burner management, this plug-in component provides critical combustion control by managing the ignition sequence and continuous flame monitoring. The Fireye MP562 is distinguished by its lockout on loss of airflow logic, ensuring a permanent safety shutdown that requires a manual reset if the air pressure switch opens during the burner cycle. Technicians can utilize the integrated check-run switch to facilitate pilot stabilization testing and flame signal strength verification without advancing to the main flame trial. This module supports selectable purge timing and pilot trial-for-ignition (PTFI) settings via internal dipswitches, allowing for precise field configuration to meet specific boiler or furnace requirements. The rugged microprocessor-based design ensures reliable operational sequencing in demanding HVACR environments, maintaining backward compatibility with standard Fireye M-Series wiring bases and chassis.
Key Benefits- Enhanced Safety Logic: Features a non-recycle programmed sequence that forces a safety lockout upon any loss of airflow or flame failure, preventing unsafe automatic restarts.
- Field Adjustability: Integrated dipswitches allow for the customization of purge timing and ignition trials to match industrial burner specifications.
- Simplified Commissioning: The manual check-run switch permits the technician to freeze the sequence during the pilot trial, ensuring the flame signal is established and stable.
- Diagnostic Reliability: On-board LED indicators provide immediate visual feedback on the control status and help rapidly identify the cause of system lockouts.
- Standardized Integration: Modular plug-in architecture fits seamlessly into MC120 and MC230 chassis for quick installation and replacement.
Is the Fireye MP562 interchangeable with the MP560?
While both belong to the M-Series II, the MP562 is a non-recycle module that includes an additional lockout on loss of airflow feature. If your application requires a manual reset after an airflow interruption, the MP562 is the correct specification.
How do I configure the purge timing on this module?
Timing is set via internal dipswitches located on the side of the module. These settings must be configured before installation, as the logic is typically locked into the eeprom after 8 hours of continuous operation.
What flame scanners are compatible with this programmer?
Compatibility is determined by the amplifier module used in the chassis. The MP562 functions as the sequence programmer and works in tandem with UV, infrared, or flame rod amplifiers within the MicroM and M-Series II infrastructure.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
