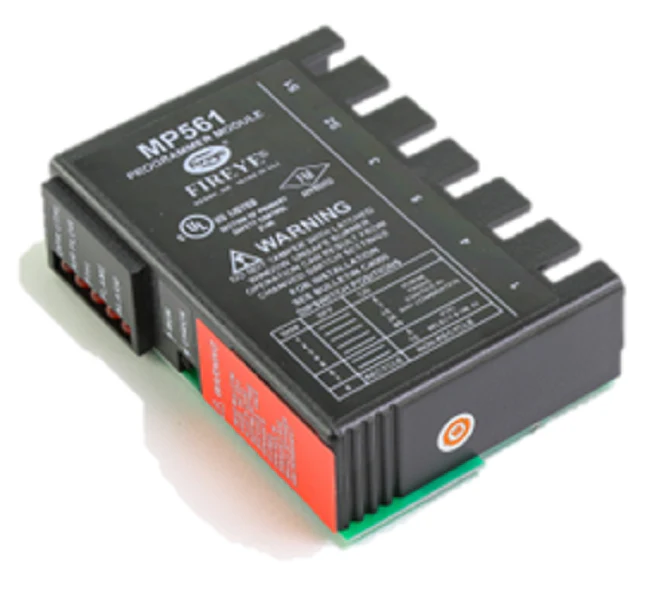

Fireye MP561 Module
The Fireye MP561 is a microprocessor-based plug-in programmer module designed specifically for use with the Fireye MicroM Flame Safeguard Control system. This module is engineered for industrial burner management, providing a fixed 10-second Pilot Ignited Trial for Ignition (PTFI) and a dedicated pilot-cutoff function. By integrating this module into your MicroM chassis, you ensure precise control over the automatic burner sequencing, including pre-purge, ignition, and flame monitoring. The MP561 programmer is a critical component for contractors maintaining modular combustion systems where intermittent pilot operation is required. It utilizes solid-state circuitry to interface with various flame scanners, including UV and infrared sensors, to maintain safe operating parameters. The non-volatile memory within the module retains lockout history and operational timing, ensuring reliable diagnostics even after a power cycle. When replacing an existing Fireye flame safeguard component, verify the dip switch configurations and timing requirements to match the specific application's safety standards.
Key Performance Benefits
- Precise 10-Second PTFI: Ensures reliable ignition timing for consistent burner startup cycles.
- Pilot-Cutoff Logic: Enhances safety by terminating the pilot flame once the main burner flame is established and proven.
- Modular Compatibility: Seamlessly installs into standard MicroM MEC120 or MEC230 chassis for easy field replacement.
- Rugged Industrial Design: Built to withstand the high-temperature environments of commercial boiler rooms and process heating applications.
- Advanced Diagnostics: Compatible with ED510 display modules for real-time flame signal strength and fault code monitoring.
Common Technical Questions
What is the primary function of the pilot-cutoff in the MP561?
The pilot-cutoff feature ensures that the pilot gas valve is de-energized after the main flame trial for ignition is successful, transitioning the system to a main flame only run state.
Can the MP561 be used for continuous firing applications?
This module is intended for intermittent operation; for systems requiring a standing pilot or different purge timing, a different MP-series programmer must be specified based on the appliance's UL/FM requirements.
How do I troubleshoot a lockout on this programmer module?
Check the flame signal voltage at the test jacks. If the signal is below the required threshold during the PTFI, the MP561 will initiate a safety lockout to prevent unburned fuel accumulation.
