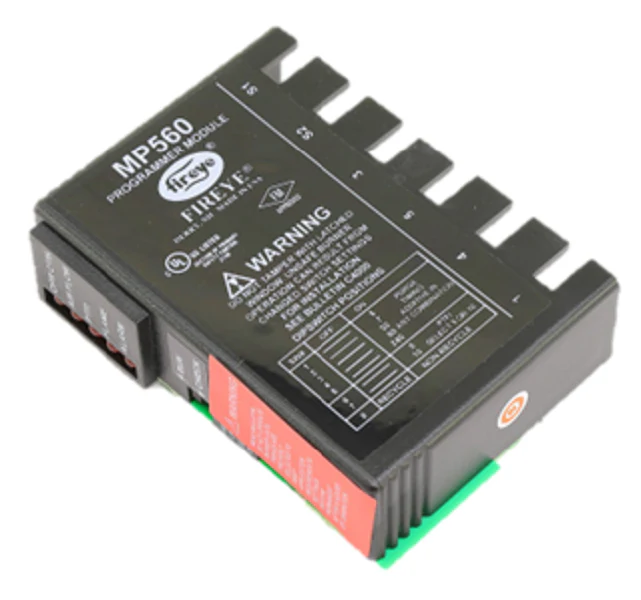

Fireye MP560 Module
The Fireye MP560 is a MicroM flame safeguard chassis designed for comprehensive flame monitoring in automatic burners. Operating on 230VAC 50/60Hz, this module serves as a direct replacement or upgrade for legacy M-Series controls. It provides essential logic for pilot cutoff, trial for ignition (TFI), and stabilization timing to ensure stable combustion before main valve activation. The MP560 chassis features a Check-Run switch, allowing technicians to lock the programmer in the "Check" position for precise pilot flame adjustment and flame signal strength verification. This microprocessor-based control integrates with MEP programs and utilizes LED status indicators for real-time diagnostics of the operating sequence. Compatible with Fireye flame scanners (Ultraviolet or Infrared), the Fireye MP560 programmer ensures system reliability by enforcing strict timing for pre-purge and safety shutdown protocols during a flame failure event.
Key Benefits for Technicians
- Enhanced Safety Logic: Provides dedicated pilot cutoff and flame stabilization cycles to prevent nuisance lockouts.
- Diagnostics: Integrated Check-Run switch facilitates simplified combustion tuning and troubleshooting.
- Backward Compatibility: Designed to mount on 61-3060 or 61-5042 subbases for streamlined field installation.
- Robust Construction: Engineered for industrial environments with high-tolerance flame signal sensing performance.
Common Installation Questions
Is the Fireye MP560 compatible with my existing UV scanner?
Yes, the Fireye MP560 is compatible with standard UV1A, UV2, and 45UV5 scanners, provided the correct MEP plug-in module is utilized for the specific timing requirements of your burner.
What is the purpose of the Check-Run switch during commissioning?
The switch allows the contractor to halt the automatic sequence during the pilot trial for ignition. This is critical for measuring the flame signal voltage and ensuring the pilot is properly positioned before releasing to the main flame.
Can I use this module for 120VAC applications?
No, the MP560 is specifically rated for 230VAC operation. Installing this on a 120V circuit will result in failure to power the microprocessor logic and potential hardware damage.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
