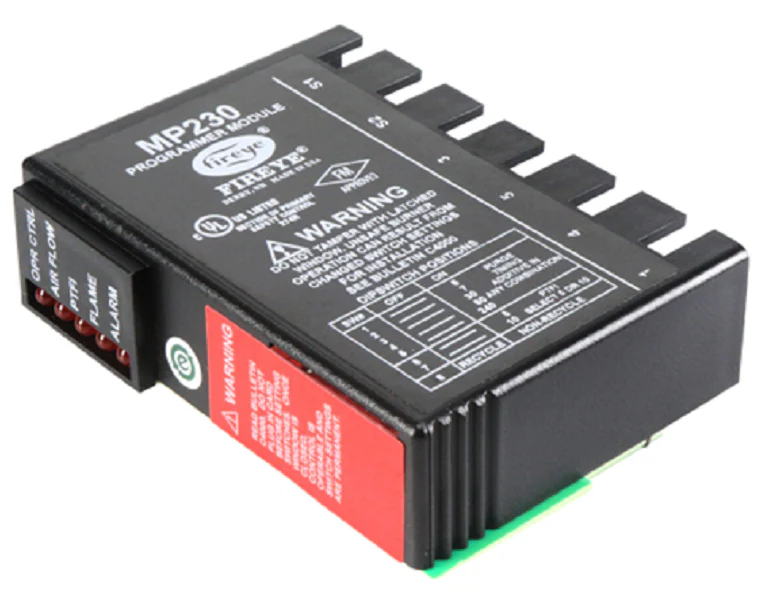

Fireye MP230 Module
Ensure precise burner sequencing and safety with the Fireye MP230 Programmer Module. Designed as a direct plug-in component for the Fireye Modular M-Series II system, this module provides the critical logic required for automatic ignition and continuous flame monitoring. It is a selectable timing programmer, allowing technicians to field-configure purge intervals (5, 7, 30, 60, or 240 seconds) and Pilot Trial for Ignition (PTFI) durations (5 or 10 seconds) via integrated DIP switches. This versatility makes the Fireye MP230 an essential stock item for maintaining a variety of commercial gas and light oil burners. The module supports recycle or non-recycle operation modes following a flame failure, giving you the control to match local code requirements or specific appliance specifications. Built for the rigors of the mechanical room, it fits securely into MC120 or MC230 chassis and works in tandem with MART or MAUV amplifiers to deliver high-integrity flame safeguard performance without unnecessary complexity.
Key Benefits- Field-Adjustable Purge: Multiple timing options from 5 to 240 seconds allow for precise matching of burner airflow requirements.
- Modular Interchangeability: Simple plug-in installation into M-Series II chassis minimizes downtime during emergency service calls.
- Diagnostic Feedback: Integrated LED status indicators provide immediate visual verification of operating controls, airflow, and flame signals.
- Configurable PTFI: Choice of 5 or 10-second trial for ignition ensures reliable light-off for different fuel types and burner geometries.
- Safety Interlock Integration: Manages terminal 8 load ratings and monitoring to prevent unsafe startup conditions.
Is the MP230 compatible with MicroM chassis?
No, the Fireye MP230 is designed specifically for the Modular M-Series II (MC120/MC230) chassis and is not interchangeable with MicroM (MEC) components.
Can I change the timing settings after installation?
Yes, the selectable timing is controlled by physical DIP switches. Ensure power is disconnected and the module is removed from the wiring base before adjusting switch positions.
What happens during a flame failure?
Depending on your DIP switch configuration, the MP230 module will either initiate a recycle (attempting a restart) or a non-recycle lockout requiring a manual reset.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
