Fireye MP100 Module

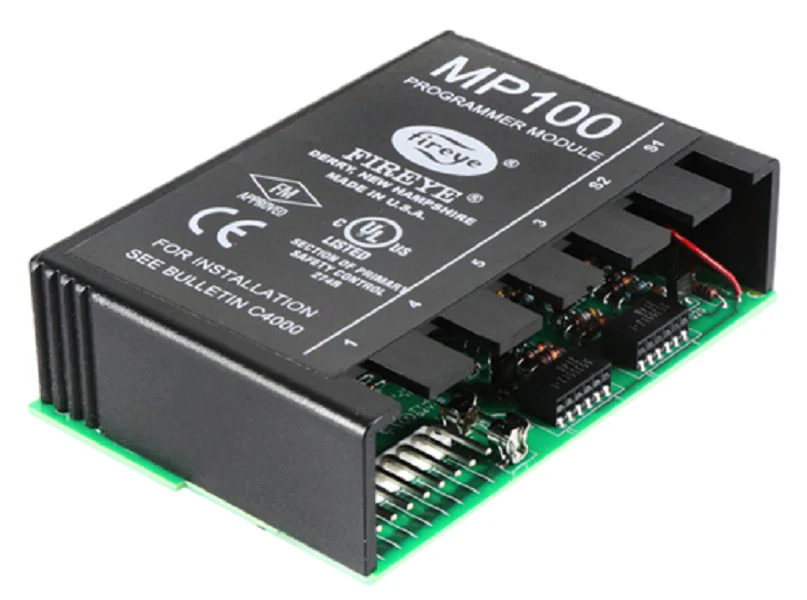

The Fireye MP100 is an essential programmer module designed specifically for the Fireye Modular M-Series II flame safeguard control system. Engineered for high-demand commercial and industrial burners, this module provides a 10-second Pilot Trial for Ignition (PTFI) and is primarily utilized for its relight function. In the event of a flame failure during the main firing period, the MP100 will attempt to re-establish ignition before initiating a safety lockout, ensuring maximum uptime for critical heating processes. This plug-in component is compatible with standard 120 VAC MC120 chassis and works in tandem with various flame amplifiers to monitor gas or light oil fuels. The MP100 burner controller features five diagnostic LEDs that provide immediate visual feedback on operating status, including airflow, PTFI, and flame presence. For technicians managing older standing pilot systems, the internal red wire loop can be modified to disable pilot proving during the off-cycle, allowing for versatile field integration.
Key Benefits- Relight Operation: Automatically attempts re-ignition upon flame loss to reduce unnecessary system downtime.
- Plug-in Architecture: Simplifies installation and replacement within the M-Series II chassis without requiring extensive rewiring.
- Diagnostic Intelligence: Features five dedicated LEDs for real-time monitoring of terminal status and fault identification.
- Field Versatility: Supports gas and light oil burners and can be adapted for standing pilot applications.
- Rugged Temperature Rating: Built to operate reliably in environments ranging from -40??F to 140??F.
What is the difference between the MP100 and MP101?
While both support relight functions, the MP101 is specifically designed to ignore flame signals during the "Off" cycle, preventing nuisance lockouts in specific furnace environments.
How do I test the flame signal with this module?
Flame signal strength is measured via test jacks located on the flame amplifier module (such as the MAUV1 or MART1), not the MP100 itself. The MP100 coordinates the timing and sequence based on that signal.
Which chassis is compatible with the MP100?
It is designed for the 120V M-Series II chassis, including the MC120, MC120P, and MC120R models. For 230V applications, the MP100E variant is required.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Fireye MP100 Module
The Fireye MP100 is an essential programmer module designed specifically for the Fireye Modular M-Series II flame safeguard control system. Engineered for high-demand commercial and industrial burners, this module provides a 10-second Pilot Trial for Ignition (PTFI) and is primarily utilized for its relight function. In the event of a flame failure during the main firing period, the MP100 will attempt to re-establish ignition before initiating a safety lockout, ensuring maximum uptime for critical heating processes. This plug-in component is compatible with standard 120 VAC MC120 chassis and works in tandem with various flame amplifiers to monitor gas or light oil fuels. The MP100 burner controller features five diagnostic LEDs that provide immediate visual feedback on operating status, including airflow, PTFI, and flame presence. For technicians managing older standing pilot systems, the internal red wire loop can be modified to disable pilot proving during the off-cycle, allowing for versatile field integration.
Key Benefits- Relight Operation: Automatically attempts re-ignition upon flame loss to reduce unnecessary system downtime.
- Plug-in Architecture: Simplifies installation and replacement within the M-Series II chassis without requiring extensive rewiring.
- Diagnostic Intelligence: Features five dedicated LEDs for real-time monitoring of terminal status and fault identification.
- Field Versatility: Supports gas and light oil burners and can be adapted for standing pilot applications.
- Rugged Temperature Rating: Built to operate reliably in environments ranging from -40??F to 140??F.
What is the difference between the MP100 and MP101?
While both support relight functions, the MP101 is specifically designed to ignore flame signals during the "Off" cycle, preventing nuisance lockouts in specific furnace environments.
How do I test the flame signal with this module?
Flame signal strength is measured via test jacks located on the flame amplifier module (such as the MAUV1 or MART1), not the MP100 itself. The MP100 coordinates the timing and sequence based on that signal.
Which chassis is compatible with the MP100?
It is designed for the 120V M-Series II chassis, including the MC120, MC120P, and MC120R models. For 230V applications, the MP100E variant is required.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
