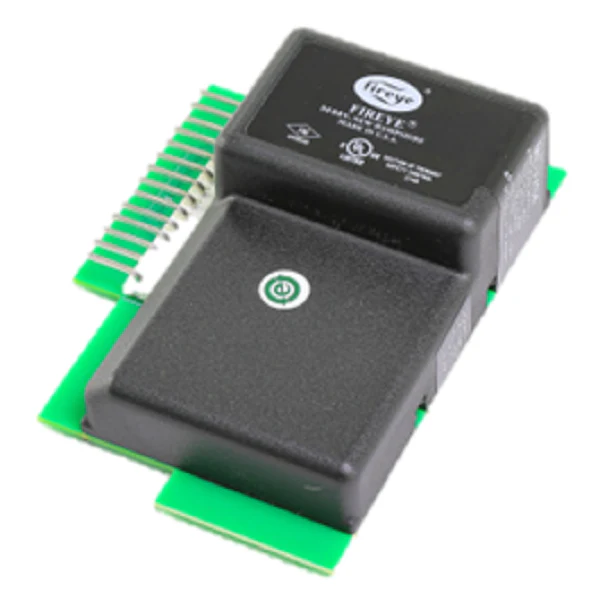

Fireye MEUVS4 Amplifier
The Fireye MEUVS4 is a UV self-check amplifier specifically engineered for use with the Modular MicroM series flame safeguard controls. Designed for high-demand industrial burner applications, this module provides the requisite 3-second flame failure response time (FFRT) to ensure rapid shutoff during a loss of flame signal. As a veteran-grade burner control amplifier, it features an integrated safety checking circuit that performs continuous component validation when paired with 45UV5-1009 self-checking scanners. This makes it a reliable choice for constantly fired burners where manual safety checks are impractical.
The MEUVS4 amplifier utilizes a specialized plug-in architecture for seamless integration into the MicroM chassis, including MEC120 and MEC230 models. Field testing is streamlined via built-in 0-10 VDC test jacks, allowing technicians to verify flame signal intensity during live operations. By effectively managing ultraviolet flame detection, the module prevents unsafe startup conditions and provides stable, long-term performance across various fuel types. Its backward compatibility with existing Fireye M-Series systems ensures a straightforward upgrade path for aging boiler controls.
Key Benefits for Contractors:- Dynamic Self-Checking: Continuous electronic validation when used with 45UV5 series scanners ensures the highest level of flame monitoring safety.
- Optimized Response: A nominal 3-second (4-second maximum) FFRT provides the necessary balance between nuisance-trip prevention and safety.
- Diagnostic Testing: Uniform 0-10 VDC test jacks allow for precise signal measurement without interrupting the control sequence.
- Chassis Compatibility: Designed for direct replacement within the Modular MicroM ecosystem for fast field service.
- Which scanners are compatible with the MEUVS4? This amplifier is specifically matched with the 45UV5-1008 and 45UV5-1009 ultraviolet self-checking scanners.
- Can I use this for non-stop burner operation? Yes, the self-check functionality is intended for burners that operate for 24 hours or longer without a shutdown cycle.
- How do I measure the flame signal on this module? Utilize the front-facing test jacks with a standard multimeter set to DC volts to read the 0-10 VDC signal.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
