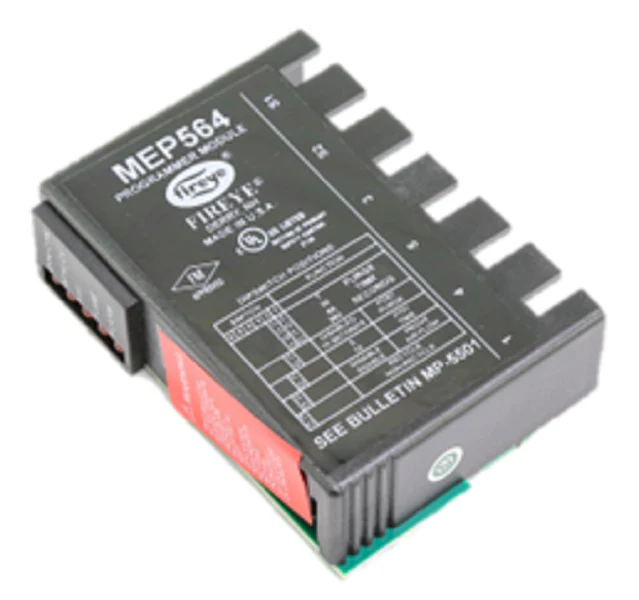

Fireye MEP564 Module
Optimize your burner management system with the Fireye MEP564, a high-performance microprocessor-based programmer module engineered for the modular MicroM control series. This module is essential for technicians managing commercial and industrial burners, providing precise control over selectable purge timings of 7, 30, 60, and 240 seconds. Designed to interface seamlessly with MEC120 and MEC230 chassis, the Fireye MEP564 features a 10-second trial for ignition (TFI) and a dedicated run-check switch to assist in pilot flame stabilization and testing. By utilizing advanced flame safeguard technology, it replaces older discrete components with reliable digital logic, supporting various flame scanners including UV, infrared, and flame rods. The integrated smart diagnostic LEDs provide immediate feedback on system status and specific lockout codes, significantly reducing troubleshooting time in the field. This non-recycle programmer ensures stringent safety protocols by preventing automatic restarts after a flame failure, making it a critical component for high-standard boiler and furnace applications.
Key Benefits- Configurable Timing: On-board dipswitches allow for selectable purge timings (7s, 30s, 60s, 240s) and post-purge settings to meet specific application requirements.
- Technical Diagnostics: Features smart LEDs that communicate real-time operational status and diagnostic lockout codes for rapid fault identification.
- Universal Compatibility: Fully backward compatible with existing TFM, UVM, and M-Series II wiring bases, allowing for straightforward field upgrades.
- System Flexibility: Supports optional ED510 display modules and Modbus communication boards for remote monitoring and data acquisition.
- Professional Testing: Includes a check/run switch to facilitate pilot turndown tests and flame signal intensity measurements without interrupting the sequence.
How do I change the purge timing on the MEP564?
Purge timings are adjusted via the six dipswitches located on the side of the module. Note that these settings become permanently stored in the EEPROM after 8 hours of continuous operation; ensure your configuration is tested and verified before this window closes.
Which chassis is this programmer module compatible with?
The MEP564 is designed for use with Fireye MicroM MEC120 (120VAC) and MEC230 (230VAC) chassis. It occupies the standard programmer slot and interfaces with all MicroM flame amplifiers.
What is the difference between the MEP564 and the MEP560?
The MEP564 offers the same core functionality as the MEP560 but features a selectable 240-second purge timing option, whereas the MEP560 is typically limited to a 90-second maximum.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $597.40
-65%$597.40
$209.09Fireye MEP564 Module
