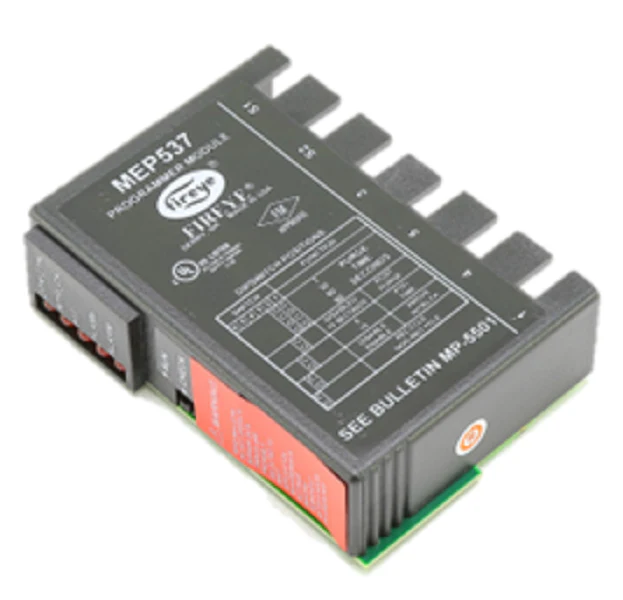

Fireye MEP537 Module
The Fireye MEP537 is a high-performance MicroM Program Module engineered for precise control and monitoring of commercial and industrial burner systems. This plug-in module is a key component of the Fireye MicroM flame safeguard system, providing automatic ignition and continuous flame monitoring across various fuel types. Designed for integration with MEC120 and MEC230 chassis, the MEP537 features a 10-second MTFI (Main Trial-for-Ignition) and a 10-second PTFI to ensure reliable combustion startup. A standout technical feature for contractors is its ability to provide one recycle on main flame failure, reducing unnecessary manual resets while maintaining system integrity. The module includes integrated dipswitches, allowing technicians to field-select purge timing (7, 30, 60, or 90 seconds) and configure post-purge settings to match specific appliance requirements. Equipped with smart diagnostic LEDs and a run-check switch, the MEP537 simplifies troubleshooting by providing real-time status codes and facilitating pilot stabilization testing without cycling the entire system.
Key Benefits
- Enhanced Operational Reliability: The recycle on flame failure logic allows the system to attempt a single restart, minimizing downtime in industrial environments.
- Versatile Configuration: On-board dipswitches enable precise adjustment of purge timing and air flow proving, ensuring compatibility with diverse boiler and furnace setups.
- Streamlined Diagnostics: Integrated microprocessor technology and diagnostic LEDs allow for rapid identification of lockout causes, significantly reducing mean-time-to-repair (MTTR).
- Easy Installation: The modular plug-in design allows for fast replacement or upgrades in existing MicroM or M-Series II wiring bases without extensive rewiring.
- Robust Safety Architecture: Built-in safety checking circuits verify the absence of a flame signal before every start, preventing hazardous ignition sequences.
Common Questions
What is the difference between the Fireye MEP537 and MEP536 modules?
While both modules share similar timing and air flow logic, the Fireye MEP537 provides a recycle on main flame failure, whereas the MEP536 is a non-recycle module. This makes the MEP537 preferred for applications where a temporary flame flicker shouldn't trigger an immediate hard lockout.
Does this module determine the Flame Failure Response Time (FFRT)?
No, the FFRT is determined by the specific MicroM amplifier module installed in the chassis, not the program module. The MEP537 manages the sequence timing, such as the 10-second MTFI and purge cycles.
Can I use the MEP537 with an 85UV4 flame scanner?
Yes, the MEP537 is compatible with various flame detection methods, including UV, infrared, and flame rods, provided the correct plug-in amplifier is used within the MicroM chassis assembly.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
