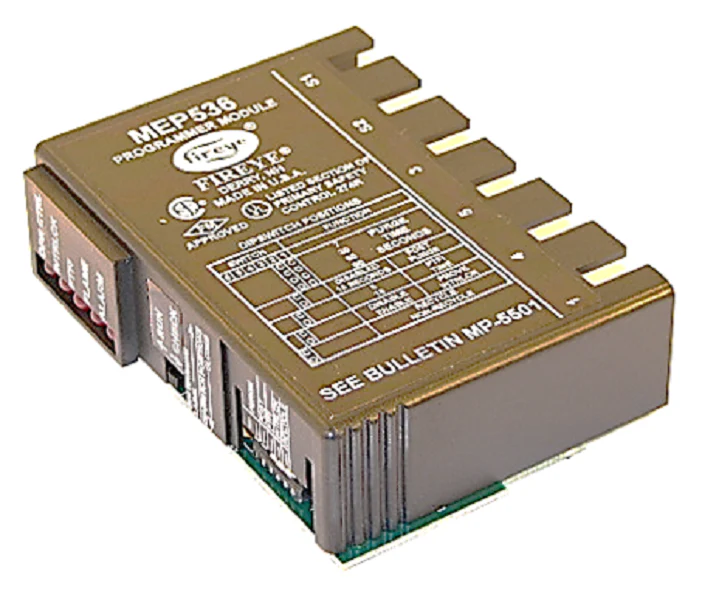

Fireye MEP536 Module
The Fireye MEP536 is a microprocessor-based MicroM Programmer Module engineered for high-performance flame safeguard applications. Designed for use with MEC120 and MEC230 series modular chassis, this component manages automatic ignition and continuous flame monitoring for commercial and industrial burners. This specific model features a 10-second Main Trial-for-Ignition (MTFI) and integrates a non-recycle operation protocol to ensure maximum system safety?Çörequiring a manual reset in the event of a flame failure. Technical versatility is achieved via on-board dip switches, allowing technicians to configure selectable purge timings (7, 30, 60, or 90 seconds) and post-purge settings. Unlike other modules in the 500 series, the MEP536 eliminates the pilot stabilization period, facilitating faster transition to the main flame. It is equipped with diagnostic LED indicators for real-time status updates and a run/check switch to assist in pilot flame testing and stabilization diagnostics.
Key Benefits- Precise timing control: Offers a fixed 10-second MTFI and adjustable PTFI timing for reliable burner startup sequences.
- Configurable safety parameters: On-board dip switches allow for customized purge and air flow proof settings without needing external software.
- Enhanced diagnostics: Smart LED indicators provide instant lockout codes, significantly reducing troubleshooting time for field contractors.
- Industrial-grade reliability: Features a plug-in design for seamless installation into existing Fireye MicroM flame safeguard systems.
- Air flow flexibility: Engineered to remain operational without locking out if air flow is proven open during the purge cycle.
What chassis is compatible with the Fireye MEP536?
The MEP536 is designed strictly for the Fireye Modular MicroM series, specifically the MEC120 (120V) and MEC230 (230V) chassis versions.
Does this module support a recycle mode on flame failure?
No, the Fireye MEP536 is a non-recycle programmer module. If a flame failure occurs, the system will initiate a safety lockout, necessitating a manual reset by an operator.
How do I adjust the purge timing on this programmer?
Purge intervals are adjusted using the internal dip switches located on the module. You can select between 7, 30, 60, and 90-second durations based on your specific boiler or furnace requirements.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
