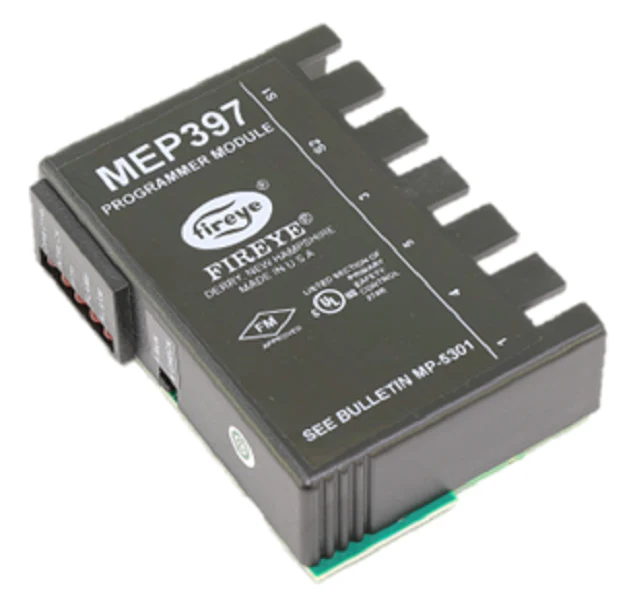

Fireye MEP397 Module
The Fireye MEP397 Module is a high-performance flame safeguard programmer designed for precision in commercial and industrial burner management. Engineering-grade logic facilitates an automatic 15-second purge cycle, ensuring the combustion chamber is clear before the interrupted pilot ignition sequence begins. Compatible with MicroM series chassis like the MEC320 and MEC480, this microprocessor-based unit eliminates the variability of discrete timing components. It features recycle on main flame fail and air flow failure, providing robust system stability in demanding environments. The integrated run/check switch allows technicians to manually lock the sequence for seamless pilot flame signal testing and stabilization. With fixed timings including a 7-second PTFI and 5-second MTFI, this module ensures repeatable, safe burner sequencing. The rugged plug-in design simplifies field replacements, while smart diagnostic LEDs offer immediate visual status for power, airflow, flame, and alarm conditions.
Key Benefits- Standardized 15-Second Purge: Delivers a consistent pre-ignition safety window for commercial burners.
- MicroM Chassis Compatibility: Fits seamlessly into MEC320 and MEC480 series wiring bases without complex reconfiguration.
- Advanced Diagnostics: Features coded LED sequences for rapid identification of flame failure or interlock issues.
- Interrupted Pilot Logic: Specifically engineered for systems requiring pilot de-energization after the main flame is established.
- Pilot Test Functionality: The built-in check-run switch enables precise flame signal measurement and electrode positioning.
Does the Fireye MEP397 recycle after a flame failure?
Yes, this module is designed to recycle on main flame failure and air flow failure, re-initiating the ignition sequence rather than forcing an immediate manual lockout.
Which chassis is compatible with the MEP397 programmer?
The MEP397 is part of the MicroM series and must be used with MEC320 (120V) or MEC480 (230V) modular chassis.
Can I adjust the purge timing on this module?
No, the 15-second purge timing on the MEP397 is fixed. For adjustable timings, a different MEP series programmer with internal DIP switches may be required.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $276.29
-65%$276.29
$96.70Fireye MEP397 Module
The Fireye MEP397 Module is a high-performance flame safeguard programmer designed for precision in commercial and industrial burner management. Engineering-grade logic facilitates an automatic 15-second purge cycle, ensuring the combustion chamber is clear before the interrupted pilot ignition sequence begins. Compatible with MicroM series chassis like the MEC320 and MEC480, this microprocessor-based unit eliminates the variability of discrete timing components. It features recycle on main flame fail and air flow failure, providing robust system stability in demanding environments. The integrated run/check switch allows technicians to manually lock the sequence for seamless pilot flame signal testing and stabilization. With fixed timings including a 7-second PTFI and 5-second MTFI, this module ensures repeatable, safe burner sequencing. The rugged plug-in design simplifies field replacements, while smart diagnostic LEDs offer immediate visual status for power, airflow, flame, and alarm conditions.
Key Benefits- Standardized 15-Second Purge: Delivers a consistent pre-ignition safety window for commercial burners.
- MicroM Chassis Compatibility: Fits seamlessly into MEC320 and MEC480 series wiring bases without complex reconfiguration.
- Advanced Diagnostics: Features coded LED sequences for rapid identification of flame failure or interlock issues.
- Interrupted Pilot Logic: Specifically engineered for systems requiring pilot de-energization after the main flame is established.
- Pilot Test Functionality: The built-in check-run switch enables precise flame signal measurement and electrode positioning.
Does the Fireye MEP397 recycle after a flame failure?
Yes, this module is designed to recycle on main flame failure and air flow failure, re-initiating the ignition sequence rather than forcing an immediate manual lockout.
Which chassis is compatible with the MEP397 programmer?
The MEP397 is part of the MicroM series and must be used with MEC320 (120V) or MEC480 (230V) modular chassis.
Can I adjust the purge timing on this module?
No, the 15-second purge timing on the MEP397 is fixed. For adjustable timings, a different MEP series programmer with internal DIP switches may be required.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
