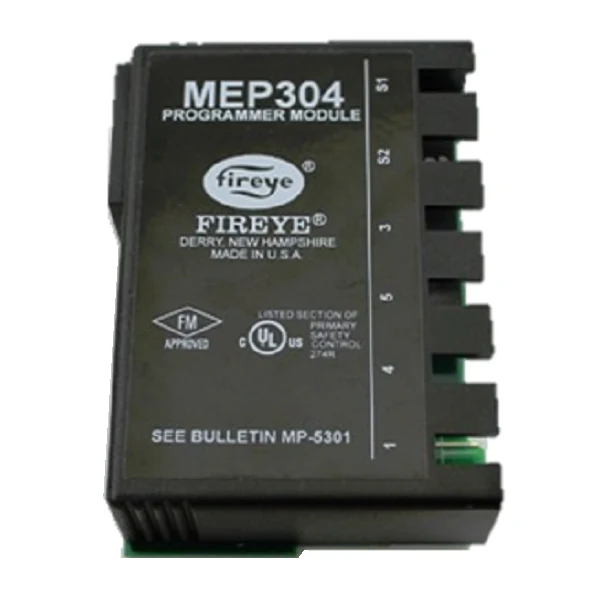

Fireye MEP304 Module
The Fireye MEP304 Programmer Module is a high-performance timing component engineered for the Fireye MicroM burner management system. Designed for use with MEC320 and MEC480 series chassis, this module provides a 5-second pre-purge and a 10-second Pilot Trial for Ignition (PTFI). As a veteran in the field, you know that the non-recycle on flame fail logic is essential for specific industrial safety protocols where a manual reset is required following a combustion interruption. The Fireye MEP304 features a 5-second pilot proving period and a 10-second Main Trial for Ignition (MTFI), supporting both interrupted pilot and interrupted ignition sequences to ensure stable flame establishment before the main valve takes over. Its microprocessor-based design eliminates the timing drift found in older discrete components, providing consistent flame safeguard reliability for commercial heating or process equipment.
Key Benefits- Precise Timing Control: Fixed 5-second purge and 10-second PTFI ensure consistent and repeatable startup sequences.
- Enhanced Safety Logic: The non-recycle feature forces a lockout upon flame failure, preventing hazardous re-ignition attempts.
- Plug-and-Play Integration: Standard MicroM pin-connectors allow for rapid installation into existing MEC120 or MEC320 chassis.
- Advanced Diagnostics: Fully compatible with ED510 display modules for real-time monitoring of flame signal and lockout history.
- Industrial Durability: Engineered for extreme conditions with a wide ambient temperature tolerance for boiler room environments.
Is the MEP304 compatible with my existing M-Series II wiring base?
Yes, MicroM modules are designed to be interchangeable with the Fireye UVM, TFM, and M-Series II controls, often requiring little to no rewiring.
What determines the Flame Failure Response Time (FFRT) for this module?
While the MEP304 handles the sequence timing, the FFRT is actually determined by the specific flame amplifier module (e.g., MEUV, MEIR, or MERT) installed in the chassis.
Can I use this module for a continuous pilot application?
No, the MEP304 is specifically programmed for interrupted pilot operation, meaning the pilot is extinguished after the main flame is proven.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
