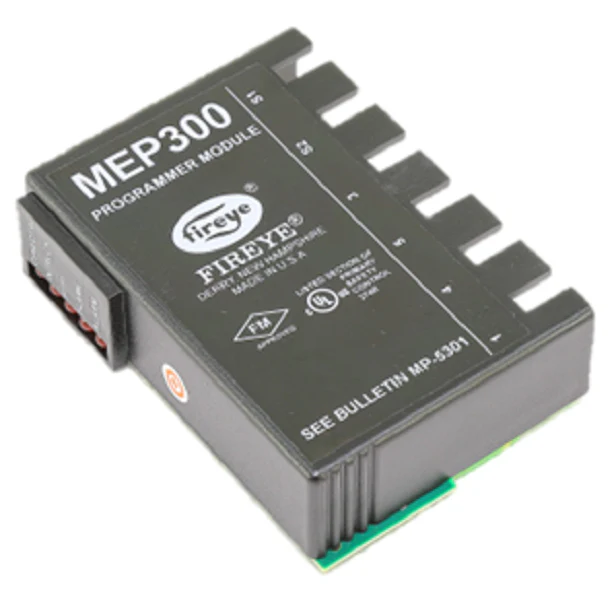

Fireye MEP300 Module
The Fireye MEP300 Module is a high-performance, 10-second fixed PTFI (Pilot Trial For Ignition) programmer module specifically engineered for use with Fireye MicroM flame safeguard systems. Designed for precise burner management, this MicroM Programmer Module integrates advanced microprocessor circuitry to replace legacy discrete timing components, providing enhanced reliability for industrial and commercial combustion applications. The MEP300 is built for a 10-second trial for ignition period, effectively managing the critical window for flame establishment. It features relight operation on main flame failure, allowing the system to attempt a reignition before proceeding to a safety lockout. Performance is optimized for intermittent pilot and interrupted pilot operations, ensuring stable combustion across diverse fuel types. This plug-in module must be installed within an MEC320 or MEC480 series chassis to function correctly. By utilizing smart diagnostic LEDs and optional Modbus serial communications via the ED510 display, technicians can rapidly troubleshoot flame failure response time (FFRT) and operational states, reducing downtime in critical boiler and furnace environments.
Key Benefits for Technicians- Fixed 10-Second PTFI: Ensures strict adherence to pre-set ignition timing requirements for safe burner startup sequences.
- Relight Operation Logic: Minimizes unnecessary shutdowns by attempting to restore main flame automatically upon occasional flame flickers or failures.
- Modular Compatibility: Seamlessly installs into Fireye MEC320 (120V) and MEC480 (230V) chassis for versatile field replacement of older M-Series II or UVM/TFM controls.
- Digital Precision: Micro-controller technology eliminates mechanical timing drift, providing consistent pilot proving and 5-second MTFI (Main Trial For Ignition) windows.
- Advanced Diagnostics: Compatible with ED510 alpha-numeric displays for real-time status updates and historical lockout data.
What happens if the Fireye MEP300 fails to detect a flame signal?
If a flame is not established during the 10-second fixed PTFI or if it fails during the 5-second pilot proving period, the module initiates a safety lockout. This requires a manual reset depending on the chassis configuration and wiring.
Is the MEP300 compatible with UV or Flame Rod amplifiers?
Yes, the MEP300 module works in conjunction with the specific MicroM amplifier selected for the application. The Flame Failure Response Time (FFRT) is ultimately determined by the choice of the amplifier module, not only the programmer.
Does this module support a post-purge cycle?
The standard MEP300 logic does not provide a post-purge. For applications requiring forced air clearing after a burner cycle, a different module in the MEP series with purge dipswitches may be required.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $237.38
-65%$237.38
$83.08Fireye MEP300 Module
The Fireye MEP300 Module is a high-performance, 10-second fixed PTFI (Pilot Trial For Ignition) programmer module specifically engineered for use with Fireye MicroM flame safeguard systems. Designed for precise burner management, this MicroM Programmer Module integrates advanced microprocessor circuitry to replace legacy discrete timing components, providing enhanced reliability for industrial and commercial combustion applications. The MEP300 is built for a 10-second trial for ignition period, effectively managing the critical window for flame establishment. It features relight operation on main flame failure, allowing the system to attempt a reignition before proceeding to a safety lockout. Performance is optimized for intermittent pilot and interrupted pilot operations, ensuring stable combustion across diverse fuel types. This plug-in module must be installed within an MEC320 or MEC480 series chassis to function correctly. By utilizing smart diagnostic LEDs and optional Modbus serial communications via the ED510 display, technicians can rapidly troubleshoot flame failure response time (FFRT) and operational states, reducing downtime in critical boiler and furnace environments.
Key Benefits for Technicians- Fixed 10-Second PTFI: Ensures strict adherence to pre-set ignition timing requirements for safe burner startup sequences.
- Relight Operation Logic: Minimizes unnecessary shutdowns by attempting to restore main flame automatically upon occasional flame flickers or failures.
- Modular Compatibility: Seamlessly installs into Fireye MEC320 (120V) and MEC480 (230V) chassis for versatile field replacement of older M-Series II or UVM/TFM controls.
- Digital Precision: Micro-controller technology eliminates mechanical timing drift, providing consistent pilot proving and 5-second MTFI (Main Trial For Ignition) windows.
- Advanced Diagnostics: Compatible with ED510 alpha-numeric displays for real-time status updates and historical lockout data.
What happens if the Fireye MEP300 fails to detect a flame signal?
If a flame is not established during the 10-second fixed PTFI or if it fails during the 5-second pilot proving period, the module initiates a safety lockout. This requires a manual reset depending on the chassis configuration and wiring.
Is the MEP300 compatible with UV or Flame Rod amplifiers?
Yes, the MEP300 module works in conjunction with the specific MicroM amplifier selected for the application. The Flame Failure Response Time (FFRT) is ultimately determined by the choice of the amplifier module, not only the programmer.
Does this module support a post-purge cycle?
The standard MEP300 logic does not provide a post-purge. For applications requiring forced air clearing after a burner cycle, a different module in the MEP series with purge dipswitches may be required.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
