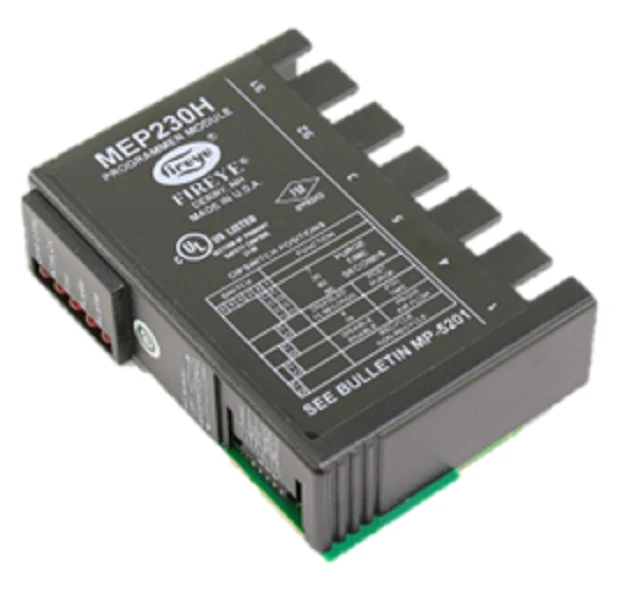

Fireye MEP230H Module
The Fireye MEP230H is a specialized MicroM Programmer Module engineered for high-performance flame safeguard applications. Designed to interface with Modular MicroM Chassis (including MC120 and MC230 series), this module provides critical sequencing and monitoring for commercial and industrial burners. While sharing the adjustable architecture of the standard MEP230, the MEP230H features a dedicated 8-second flame stabilization period. This specific delay occurs after the Pilot Trial for Ignition (PTFI), ensuring the pilot flame is fully established and stable before the main fuel valve is energized at Terminal 5. This stabilization period is essential for preventing nuisance dropouts in two-stage light oil burners or applications with fluctuating air-to-fuel ratios.
Field-configurable via integrated dipswitches, the MEP230H allows technicians to precisely set selectable purge timing (7, 30, 60, or 90 seconds) and toggle between recycle and non-recycle operation. The plug-in design facilitates rapid replacement in the field, minimizing downtime. Safety is reinforced through a 10-second MTFI, fixed post-purge capabilities, and clear LED diagnostic indicators that provide real-time status and lockout codes. This module is built for rugged environments, maintaining operational integrity across wide temperature ranges from -40??F to 140??F.
Key Benefits- 8-Second Stabilization: Delays main valve activation to ensure a robust pilot flame, reducing ignition-related flame failures.
- DIP Switch Customization: Provides field-adjustable purge timing and ignition logic to match specific burner requirements.
- Modular Compatibility: Seamlessly integrates with Fireye MicroM chassis and various flame amplifiers (UV, IR, or Flame Rod).
- Diagnostic Intelligence: Front-facing LEDs simplify troubleshooting by identifying lockout causes via coded flashes.
- Non-Recycle Safety: Configurable to lock out upon flame failure, requiring a manual reset to ensure system safety.
What is the difference between the MEP230 and MEP230H?
The MEP230H includes a fixed 8-second pilot stabilization period after flame detection, whereas the standard MEP230 proceeds to main ignition immediately following the PTFI period.
Can I change the purge timing after the module has been in service?
Dipswitch settings are permanently locked into the module's EEPROM after 8 hours of continuous operation. Adjustments must be made and verified during the initial commissioning phase.
Which chassis is this module compatible with?
The Fireye MEP230H is designed for use with all M-Series II and MicroM chassis, including the MC120 (120VAC) and MC230 (240VAC) models.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
