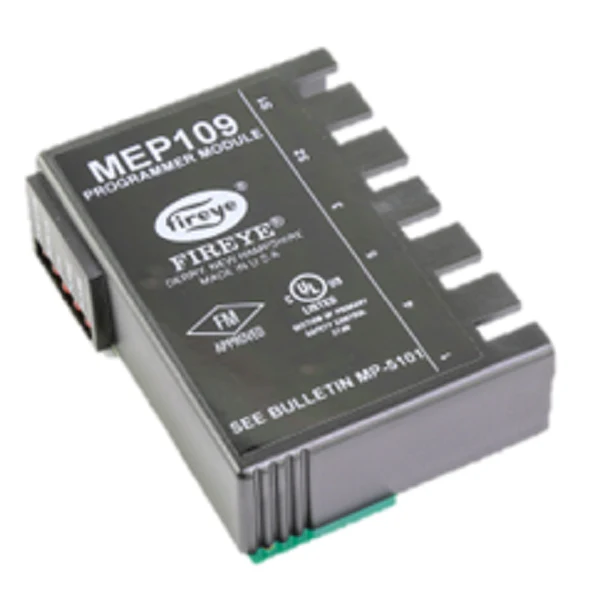

Fireye MEP109 Module
The Fireye MEP109 is a microprocessor-based programmer module designed for use with the Fireye MicroM flame safeguard chassis. This specific module provides a fixed 90-second pre-purge timing, essential for clearing the combustion chamber before ignition in industrial and commercial burner applications. Built on a plug-in design for the M-Series platform, the MEP109 ensures precise control of operational sequencing, including trial for ignition and flame monitoring. It integrates seamlessly with UV flame scanners and flame rods, utilizing the chassis' internal logic to provide supervised pilot and main fuel valve control. For technicians retrofitting or maintaining HVACR systems, this combustion control module offers reliable flame safeguard sequencing without the need for complex field programming. Its rugged construction is engineered to withstand the thermal and electrical demands of furnace and boiler environments, maintaining consistent Burner Management System (BMS) performance even under heavy duty cycles.
Key Benefits- Fixed Timing Precision: Factory-set 90-second purge duration eliminates field adjustment errors and ensures compliance with ventilation requirements.
- Modular Integration: Designed for rapid installation into standard Fireye MicroM chassis, reducing downtime during component replacement.
- Enhanced Safety Logic: Features built-in recycle function on flame failure, preventing unsafe restarts without proper sequencing.
- Diagnostic Reliability: Compatible with ED510 Display Modules for real-time status updates and troubleshooting codes.
What is the difference between the MEP100 and MEP109 modules?
The MEP100 provides a 30-second pre-purge, while the MEP109 is specifically timed for a 90-second pre-purge, making it suitable for larger combustion chambers requiring longer ventilation periods.
Does the MEP109 support interrupted or intermittent pilots?
This module supports interrupted pilot operation, where the pilot valve is de-energized after the main flame is established, optimizing fuel efficiency and component longevity.
Can I use this module with any Fireye chassis?
It is specifically designed for the M-Series MicroM chassis (MEC120/MEC230). Always verify the chassis pin configuration and scanner type before installation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
