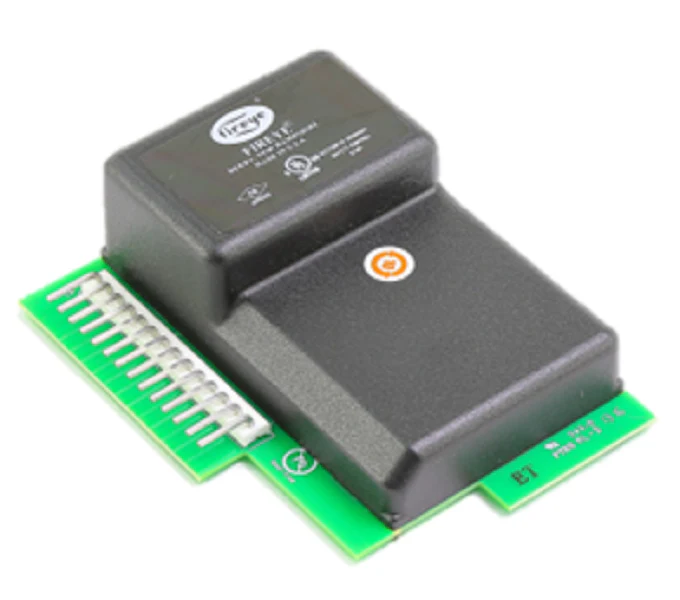

Fireye MEIR1 Amplifier
The Fireye MEIR1 is a high-performance infrared amplifier designed for the Fireye MicroM burner management system. Engineered for critical flame monitoring, this plug-in module precisely processes signals specifically from the Fireye 48PT2 infrared scanner. For contractors managing commercial and industrial combustion systems, the MEIR1 provides a rapid flame failure response time (FFRT) of 0.8 seconds, ensuring immediate safety shutdowns in the event of flame loss. Unlike slower 3-second alternatives, the swift response of the MEIR1 is essential for specific fuel types and high-capacity burners where safety margins are narrow.
This module features standardized test jacks with a 10 VDC range, allowing for direct measurement of flame signal intensity during commissioning or routine maintenance. The Modular MicroM control architecture relies on the MEIR1 for its signal amplification logic, while separate programmer modules dictate timing functions like purge and ignition. Its direct compatibility with the 48PT2 scanner makes it a staple for infrared-based detection in boilers and furnaces firing gas, oil, or dual-fuels. Built with rugged components to withstand demanding boiler room environments, the MEIR1 ensures reliable burner safeguard operation without the latency found in standard infrared detection setups.
Key Benefits- Instantaneous Safety Response: Delivers a 0.8-second FFRT to prevent hazardous fuel accumulation during flame-out events.
- Simplified Troubleshooting: Standardized 0-10 VDC test jacks allow technicians to verify signal strength on-site with a standard multimeter.
- Modular Compatibility: Seamlessly integrates with Fireye MEC120 and MEC230 chassis for easy field replacements.
- Infrared Specialization: Dedicated circuitry optimized for the 48PT2 scanner to provide accurate flame presence verification in high-interference environments.
Is the Fireye MEIR1 compatible with UV scanners?
No, the MEIR1 is specifically designed for infrared flame detection. For ultraviolet applications, you must use a MEUV series amplifier compatible with your specific UV scanner model.
What is the difference between the Fireye MEIR1 and MEIR4?
The primary difference is the flame failure response time. The MEIR1 has a nominal 0.8-second response, while the MEIR4 is rated for a nominal 3-second response time.
Can I use a multimeter to check the flame signal on this module?
Yes, you can measure the flame signal using the front-facing test jacks. A reading between 4 and 10 VDC typically indicates a strong, stable flame signal for the MicroM system.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $191.22
-65%$191.22
$66.93Fireye MEIR1 Amplifier
