Fireye MED4 Daughter Board

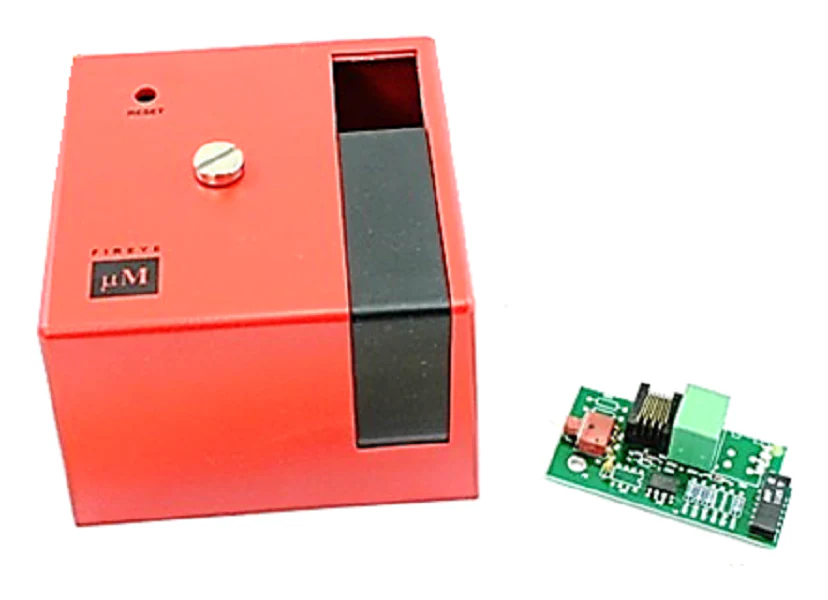

The Fireye MED4 Daughter Board is an essential internal component designed specifically for integration with Fireye Flame-Monitor systems, including the E110 and EB700 series chassis. This professional-grade display interface board features a built-in reset button and specialized circuitry for remote display output, allowing technicians to monitor flame signal strength and operational status from the cabinet exterior. Engineered for harsh boiler room environments, the MED4 module facilitates seamless communication between the ED510 display and the primary programmer module. It ensures precise data transmission for burner sequence timing and diagnostic fault logging. When performing a flame safeguard controller repair, utilizing an authentic Fireye daughterboard is critical for maintaining the UL and FM approvals of the combustion system. This board provides the necessary hardware interface for modbus communication and local reset functionality, ensuring the flame safeguard system operates within established safety parameters while providing clear visibility into the combustion cycle for routine maintenance and troubleshooting.
Key Technical Benefits
- Direct Compatibility: Engineered for seamless fitment within Fireye Flame-Monitor chassis.
- Integrated Reset Function: Includes a tactical reset button to clear lockout conditions without opening the main enclosure.
- Enhanced Diagnostics: Supplies the display output necessary for real-time monitoring of micro-amps and burner status.
- Industrial Durability: Built to withstand the thermal cycling and electrical noise common in HVACR control panels.
- Simplified Installation: Standard pin connector interface allows for rapid field replacement during service calls.
Common Questions
How do I troubleshoot a blank ED510 display using the Fireye MED4?
If the display is inactive, verify the MED4 daughter board is securely seated on the programmer module pins. Inspect the ribbon cable connection between the MED4 and the display for continuity. If the reset button functions but the display remains blank, the logic on the daughter board or the display module itself may require replacement.
Can the MED4 board be used with any Fireye programmer?
The Fireye MED4 is designed for the E110 Flame-Monitor series. Always verify the specific chassis and programmer model (such as the EP or EPD series) to ensure the daughter board version matches the required communication protocol for that generation of safeguard control.
Does this board support remote communication?
Yes, the output circuitry on the MED4 facilitates the connection to remote display units and can participate in communication loops when paired with the appropriate ED510 display and interface cabling.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
