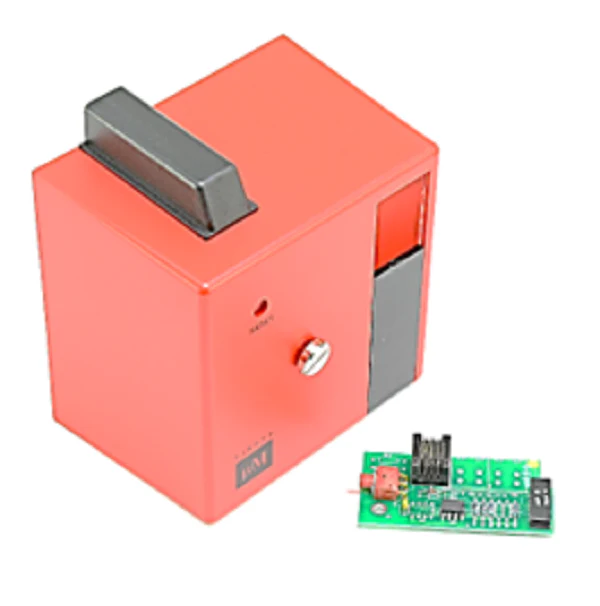

Fireye MED2 Module
The Fireye MED2 is a high-performance plug-in daughter board designed specifically for the Fireye MicroM series flame safeguard chassis, including the MEC120 and MEC230. This module serves as a critical interface component, providing a standard local reset switch and a dedicated display output. Engineered for industrial and commercial burner management, the MED2 module allows technicians to perform manual resets at the unit level, minimizing downtime during lockout events. By integrating this board into your MicroM flame safeguard system, you gain the hardware infrastructure required to support the ED510 alphanumeric display. This connection enables real-time monitoring of burner hours, system cycles, and the last six lockout diagnostic codes with precise time stamps. The robust design ensures reliable operation in demanding environments with an operating temperature range of -40??F to 140??F. For contractors managing multi-burner applications, the Fireye MED2 simplifies local diagnostics and system configuration via its smart reset functionality and plug-and-play architecture.
Key Benefits- Provides a local reset button to clear lockouts directly at the burner chassis.
- Features a high-speed display output for seamless integration with the ED510 display module.
- Compatible with all MicroM chassis types for versatile burner management upgrades.
- Facilitates advanced flame safeguard diagnostics by providing access to stored lockout history.
- Supports Modbus communication when used in conjunction with appropriate communication interface boards.
Does the MED2 module require separate power?
No, the MED2 draws its operating power directly from the MicroM chassis (120 VAC or 230 VAC depending on the model) once it is seated onto the internal pins and standoffs.
Can I use this board to connect a remote display?
Yes, the Fireye MED2 provides the necessary port to connect an ED510 display using an ED580 communication cable for local or remote mounting.
Is this module backward compatible with older M-Series systems?
While the MicroM series itself is designed for backward compatibility, the MED2 is a specific daughter board for MicroM chassis only. Verify your chassis model (e.g., MEC120R) before installation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $83.08
-65%$83.08
$29.08Fireye MED2 Module
