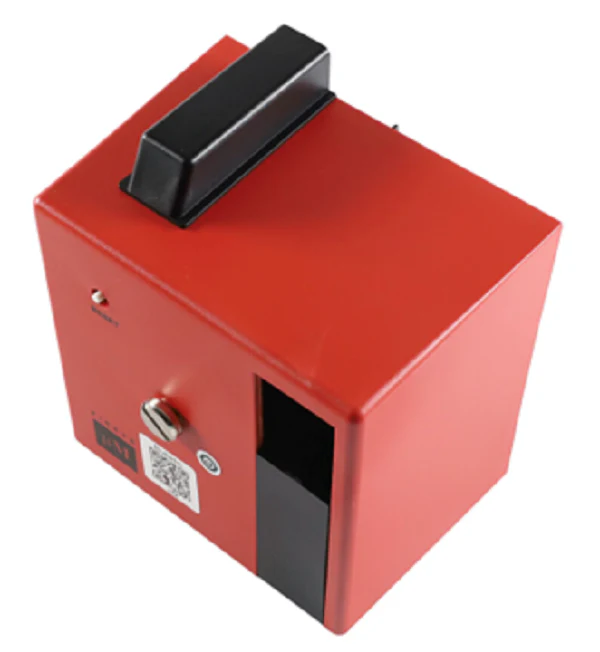

Fireye MEC320R Chassis
The Fireye MEC320R Chassis is a critical component of the modular MicroM Series Flame Safeguard system, engineered for high-performance burner management in commercial and industrial settings. Operating on 120 VAC (50/60 Hz), this microprocessor-based chassis serves as the backbone for automatic ignition and continuous flame monitoring. Unlike standard models, the MEC320R features integrated remote reset capability and comes equipped with a remote reset cap, allowing technicians to clear lockouts from a distance?Çöa vital requirement for multi-burner configurations or restricted-access installations. The unit is designed for full backward compatibility with legacy Fireye TFM, UVM, and M-Series II controls, ensuring a seamless upgrade path for existing HVACR systems. To form a complete flame safeguard control, this chassis must be paired with specific MEP300, MEP400, or MEP600 series programmers and a compatible plug-in flame amplifier, providing advanced logic such as early spark termination and pilot proving.
Key Benefits- Enhanced System Logic: Designed specifically for use with MEP300 and MEP600 series programmers, enabling precise timing functions without dependence on discrete components.
- Remote Reset Integration: Includes a factory-supplied remote reset cap to facilitate manual reset of lockout conditions via a remote switch.
- Direct Retrofit Compatibility: Engineered to replace older M-Series II and TFM/UVM flame safeguard controls without requiring extensive rewiring of the existing base.
- Microcontroller Precision: Utilizes digital technology for "smart" diagnostics, providing accurate fault identification and system status via LED indicators.
- Modular Versatility: Supports a wide range of flame scanning methods, including UV, Infrared, and Flame Rod, depending on the amplifier selected.
Which programmer modules are compatible with the MEC320R?
The MEC320R is optimized for the MEP300, MEP400, and MEP600 series. It is not intended for use with MEP100/200/500 series programmers, which typically pair with MEC120 or MEC230 chassis.
What is the purpose of the included remote reset cap?
The cap protects the reset terminal while allowing for the connection of a remote momentary switch. This allows the burner management system to be reset from a control panel rather than directly at the Fireye chassis.
Can I use my existing 120V wiring base with this chassis?
Yes, the Fireye MEC320R is built for modular installation into standard Fireye wiring bases, maintaining the 120 VAC input requirement for compatibility with existing field wiring.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $466.95
-65%$466.95
$163.43Fireye MEC320R Chassis
