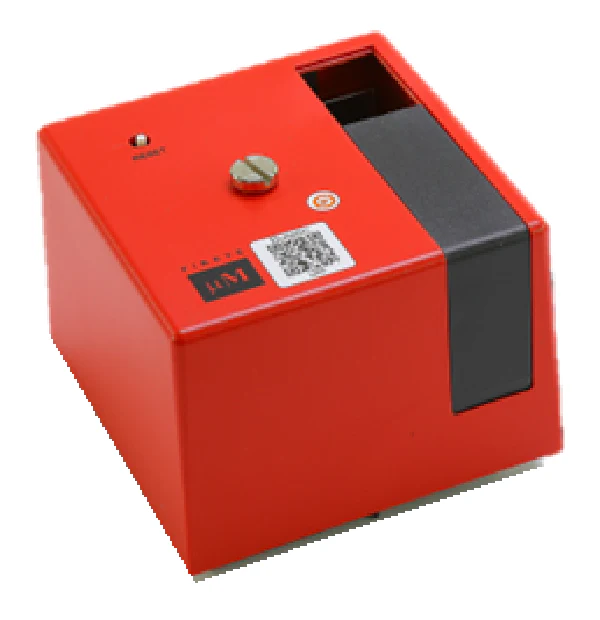

Fireye MEC120RD Chassis
The Fireye MEC120RD Chassis is a core component of the modular Fireye MicroM Series, engineered to provide reliable flame safeguard control for commercial and industrial burner applications. This 120VAC unit functions as the foundational burner management system, coordinating with plug-in flame amplifiers and programmer modules to ensure safe automatic ignition and continuous monitoring. Designed for maximum field versatility, the MEC120RD features remote reset capability and a dedicated interface for the ED510 display, allowing technicians to access critical diagnostic LED codes and system hours without specialized tools. As a direct backward compatible solution for legacy TFM, UVM, and M-Series II controls, this chassis facilitates seamless upgrades to modern micro-controller technology while utilizing existing wiring bases. Whether you are firing gas, oil, or multi-fuel systems, the MEC120RD provides high-performance reliability in high-cycle environments, eliminating the dependency on older discrete timing components.
Key Benefits for Contractors- System Versatility: Supports a wide range of flame detection methods, including UV, Infrared, and Flame Rod rectification through interchangeable amplifier modules.
- Backwards Compatibility: Mounts directly to standard Fireye wiring bases, enabling fast retrofits of obsolete TFM and UVM controls with minimal rewiring.
- Enhanced Diagnostics: Integrated interface for ED510 alpha-numeric displays provides real-time access to lockout history and flame signal intensity.
- Microprocessor Precision: Utilizes advanced micro-controller technology for accurate timing and internal safety self-checks on every start-up.
- Remote Operation: Features dedicated terminals for remote reset, reducing unnecessary site visits for simple lockout clearing.
What programmers are compatible with the MEC120RD chassis?
This chassis is designed for use with MEP100, MEP200, and MEP500 series programmer modules. It is not compatible with MEP300 or MEP600 series modules, which require different chassis types.
Can I use a UV self-check scanner with this unit?
Yes, compatibility depends on the plug-in amplifier. When paired with an MEUVS4 amplifier, the MEC120RD supports self-checking UV scanners for continuous-fire burner applications.
How do I measure the flame signal on this chassis?
Technicians can measure flame signal intensity using the test jacks located on the plug-in amplifier module. These provide a 0-10 VDC output corresponding to the strength of the flame detection.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
