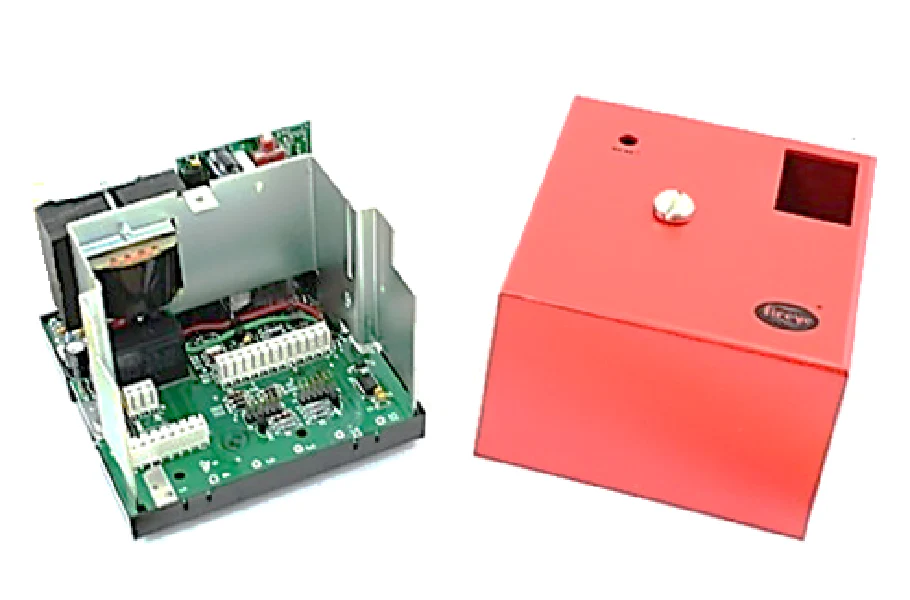

Fireye MC120E Chassis
The Fireye MC120E Chassis is a critical component of the Flame-Monitor flame safeguard system, engineered for reliable boiler control oversight in commercial and industrial applications. Operating at 120 VAC (50/60 Hz), this modular chassis provides the essential hardware interface for Fireye burner management programmer and amplifier modules. Designed for DIN rail mounting or surface installation, the MC120E facilitates seamless high-voltage signal processing while maintaining strict flame signal monitoring standards. Its robust internal architecture ensures stable pilot and main valve sequencing, crucial for preventing nuisance shutdowns in heavy-duty heating systems. As a veteran technician knows, the integrity of the control base wiring and chassis connection is paramount for accurate ultraviolet or infrared flame detection. This unit serves as the backbone for E110 series controls, providing the necessary interlock circuitry and safety limit integration required for compliant HVACR equipment maintenance and burner optimization.
Key Technical Benefits
- Universal Compatibility: Specifically designed to house all Fireye Flame-Monitor plug-in programmer and amplifier modules.
- Rugged Electrical Design: Handles standard 120 VAC line voltage with superior thermal management for high-duty cycle burner applications.
- Simplified Field Troubleshooting: Feature-rich internal bus allows for easier voltage testing and flame signal strength verification.
- Industrial-Grade Housing: Built to withstand the vibrating and high-temperature environments typical of mechanical rooms and industrial boiler fronts.
- Standardized Terminal Layout: Ensures straightforward retrofit installations and reduces wire tracing time during system commissioning.
Common Industry Questions
Is the MC120E chassis compatible with older Fireye E100 systems?
Yes, the MC120E chassis is the direct replacement for standard Flame-Monitor foundations and supports E110 and EB700 series components for modern flame safeguard upgrades.
Does this chassis provide internal fuse protection?
The Fireye MC120E relies on external overcurrent protection and proper control circuit grounding; always verify your wiring diagram for specific fuse ratings required for the connected programmer.
Can I mount this chassis in any orientation?
While the MC120E is versatile, it is standard practice to mount it vertically to ensure proper heat dissipation and to prevent module seating issues during high-vibration burner cycles.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
