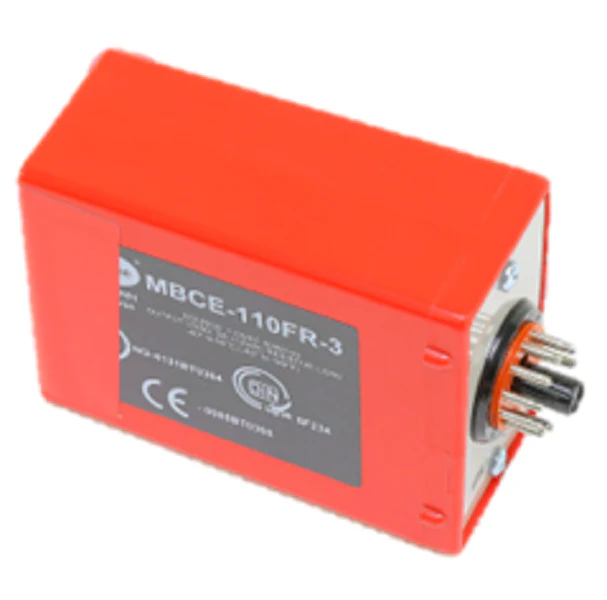

Fireye MBCE-110FR-3 Module
The Fireye MBCE-110FR-3 is a dedicated flame signal amplifier and burner control module engineered for intermittent operation in industrial and commercial combustion systems. Operating at 120V AC, this module utilizes flame rectification technology to monitor gas or oil pilots and main flames. A critical specification for field technicians is its 3-second Flame Failure Response Time (FFRT), which ensures rapid fuel shut-off upon loss of signal, maintaining compliance with stringent safety standards. Designed for DIN rail mounting, the MBCE-110FR-3 features an internal flame signal strength test point, allowing for precise alignment and troubleshooting using a standard micro-ammeter. This module is often integrated into multi-burner systems where individual flame supervision is required. Its compact architecture facilitates high-density panel integration while providing reliable combustion safeguards for atmospheric and power burners. Solid-state circuitry ensures high resistance to vibration and environmental interference common in mechanical rooms.
Key Benefits for Technicians:- Enhanced Safety Compliance: The 3-second FFRT meets rigorous safety requirements for industrial burner applications.
- Universal Rectification Compatibility: Works seamlessly with standard flame rods and electrodes for versatile field application.
- Diagnostic Monitoring: Features built-in test jacks for real-time flame signal microamp readings during commissioning.
- Simplified Installation: Compact DIN rail housing reduces cabinet footprint and accelerates wiring in multi-zone configurations.
- Stable Operation: High-quality solid-state design filters out electrical noise to prevent nuisance lockouts.
What is the typical flame signal strength for the MBCE-110FR-3?
Technicians should look for a steady signal between 4 and 10 microamps. Any reading below 2 microamps indicates a potential grounding issue or fouled flame rod.
Can this module be used for continuous operation?
No, the Fireye MBCE-110FR-3 is rated for intermittent duty, meaning the burner must cycle at least once every 24 hours to perform a safety check.
Is the 3-second FFRT adjustable?
The 3-second flame failure response time is a fixed safety parameter of the module hardware and cannot be field-adjusted to ensure system integrity.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
