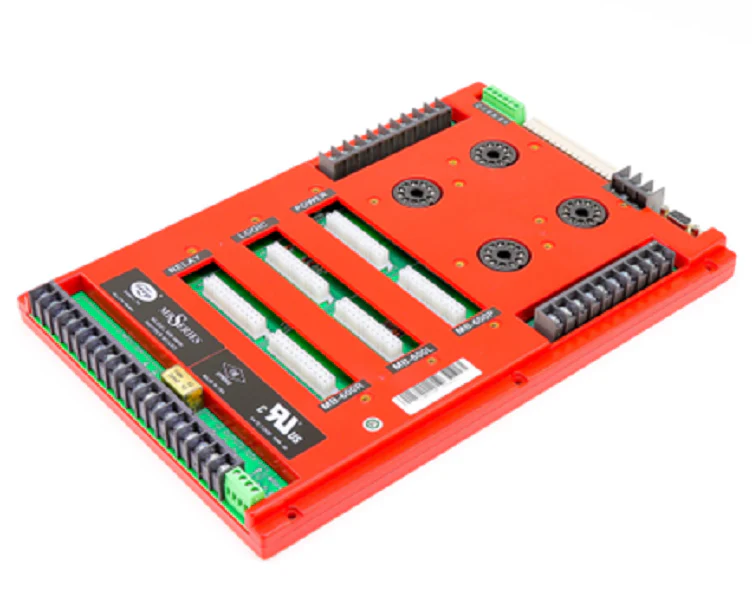

Fireye MB-600M Mother Board
The Fireye MB-600M Mother Board is a critical component of the Fireye Multi-Burner Monitoring System (MB Series), specifically engineered for the centralized management of industrial process heating burner management systems (BMS). As a heavy-duty replacement mother board, the MB-600M serves as the structural and electrical backbone for the MB-600S system, providing the necessary interface for the Fireye MB-600R relay module, MB-600L logic module, and MB-600P power module. Designed for high-reliability 120 VAC, 50/60 Hz environments, this board facilitates the simultaneous monitoring of up to 20 individual gas or oil burners when integrated with MB-604E or MB-608E expansion modules. By managing internal communications and power distribution across the modular chassis, the MB-600M ensures synchronized flame safeguard performance, including vital safety functions like purge modulation, valve leak testing, and proof of closure interlocks.
Key Benefits
- System Modularization: Simplifies troubleshooting by allowing individual module swaps (logic, relay, or power) without full BMS re-wiring.
- Industrial Scalability: Supports daisy-chaining with expansion boards to monitor a multi-flame system from 4 to 20 burners.
- Technical Compliance: Meets rigorous industrial safety standards as a UL-recognized and FM-approved component.
- Robust Connectivity: Features high-quality terminal blocks for secure 120VAC field wiring and flame sensor module integration.
- Centralized Diagnostics: Provides the essential pathways for the Fireye MB-510 remote display to provide real-time lockout and status codes.
Common Questions
What is the difference between the MB-600M and MB-632M or MB-685M boards?
The Fireye MB-600M is the standard non-communication mother board. If your system requires RS-232 serial communication, the MB-632M is required, while the MB-685M is used for RS-485 Modbus networks.
Can the MB-600M be used with different flame sensors?
Yes, the mother board supports the Fireye MB-600PF sensor modules, which allows for UV scanners, self-check UV, or flame rod rectification based on your burner application.
Does this board include the logic and relay modules?
No, the MB-600M is the replacement mother board only. The MB-600L logic, MB-600R relay, and MB-600P power modules must be ordered separately or salvaged from the existing chassis.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
