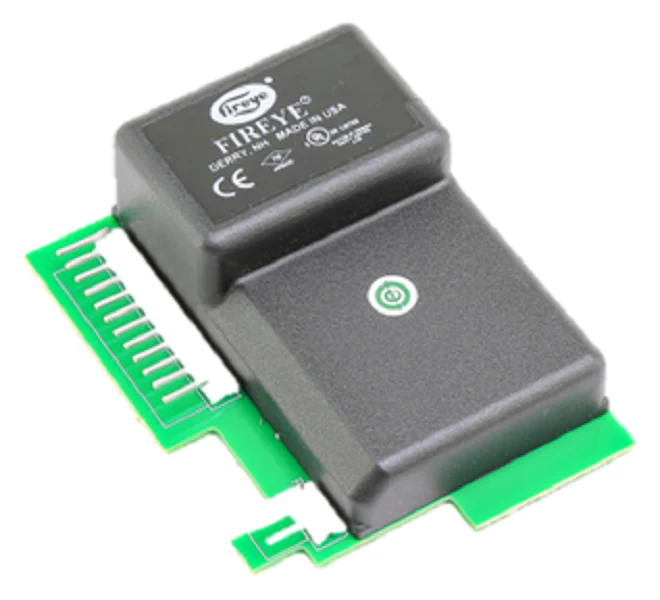

Fireye MART1T Amplifier
The Fireye MART1T Amplifier is a professional-grade flame rectification module engineered for high-performance combustion safety within the Fireye M-Series II control family. This specific flame rectification amplifier is designed to detect the DC current generated by a flame between an electrode and ground, providing a crucial safety interface for industrial and commercial burner management systems. With a specialized .8 second Flame Failure Response Time (FFRT), the MART1T offers rapid detection capabilities, significantly reducing the window for potential fuel buildup compared to standard 2-4 second modules. This makes it an essential component for high-output applications where rapid shutdown is a technical requirement for site safety and operational compliance.
Built for seamless integration, the MART1T features a rugged plug-in design that allows for immediate installation into the Fireye MC120 or MC230 series chassis without complex rewiring. Technicians can perform real-time diagnostics using the integrated test jacks, which allow for precise flame signal measurement during the burner's run cycle. This amplifier is fully compatible with Fireye 69ND1 flame rods and 45CM1 scanners, ensuring stable flame monitoring for gas or light oil fuels. By accurately processing rectified signals, the MART1T maintains a reliable "flame-on" status to the programmer module, effectively preventing nuisance shutdowns while ensuring absolute protection during a legitimate flame loss event.
Key Benefits:- Rapid Safely Response: Features a 0.8 second FFRT to ensure nearly instantaneous fuel shutoff upon flame failure.
- Universal M-Series II Compatibility: Engineered specifically for use with Modular M-Series II chassis (MC120, MC230) and programmer modules.
- Precision Troubleshooting: Built-in test jacks facilitate fast flame signal strength checks with a standard microammeter.
- Durable Rectification Technology: Optimized for use with 69ND1 flame rods to provide reliable detection in high-temperature environments.
- Simplified Serviceability: The plug-in module format allows for quick field replacement, minimizing burner downtime for contractors.
What is the difference between MART1 and MART1T?
The primary technical difference is the response time. While the standard MART1 has a 2-4 second Flame Failure Response Time, the MART1T is a "fast" response version with a 0.8 second FFRT, required for specific high-capacity burner applications.
Can I use the MART1T with a UV scanner?
No, the MART1T is a rectification amplifier designed for flame rods or the 45CM1 infrared scanner. For ultraviolet detection, you must use an MAUV Series amplifier compatible with your specific UV scanner model.
Does this module determine the purge timing?
No, the Fireye MART1T only handles flame signal amplification and response time. The purge timing and operational sequences are determined by the M-Series II programmer module (such as the MP230 or MP560) installed in the chassis.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
