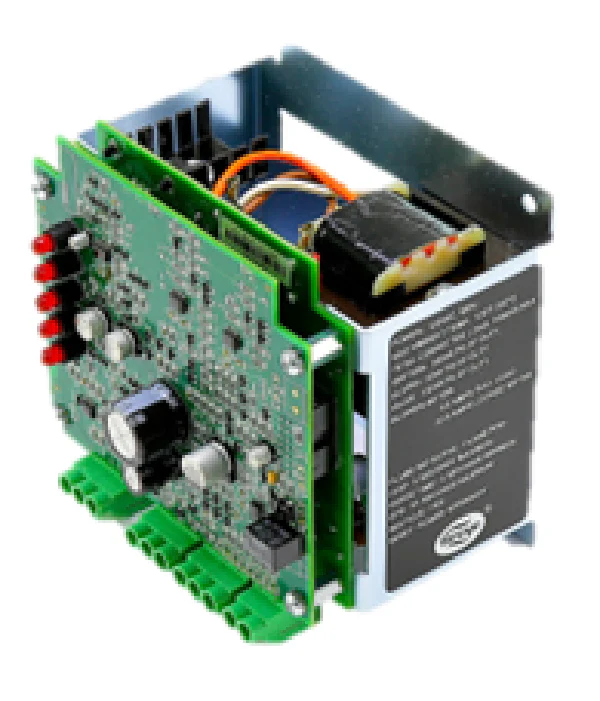

Fireye M4RT1 Control
The Fireye M4RT1 is a high-performance flame safeguard control engineered for the management of commercial burner systems and industrial process heating. Operating on 120V AC, this compact burner management system provides essential automatic ignition and continuous flame monitoring specifically for gaseous fuel applications. Technicians utilize the M4RT1 for its integrated design, featuring a flame rod detector amplifier and a fixed 5-second pilot trial for ignition (P.T.F.I.). The unit is built for reliability in demanding environments, incorporating a safety check circuit that verifies the absence of a flame signal before every startup and during the purge cycle to prevent hazardous fuel valve activation.
Installation is streamlined for contractors as the Fireye M4RT1 includes integral terminals on the relay board, eliminating the requirement for a separate wiring base. With a fixed flame failure response time (F.F.R.T.) of 3 seconds, the control ensures a rapid safety shutdown and lockout upon loss of flame signal or ignition failure. Integrated test jacks allow for direct flame signal strength measurement during live operation, facilitating precise tuning and troubleshooting of the combustion control sequence. This unit provides a standard manual reset, though remote reset capabilities can be integrated via an external pushbutton for restricted access or complex panel configurations.
Key Benefits for Technicians:
- Simplified Installation: Built-in terminal blocks remove the need for additional wiring bases, reducing cabinet footprint and labor time.
- Enhanced Safety Logic: The 3-second F.F.R.T. and pre-startup safety checks ensure compliance with industrial burner safety standards.
- Versatile Configuration: Factory-set jumpers allow for recycle or non-recycle operation and selectable purge timing to match specific appliance requirements.
- Diagnostic Testing: Onboard test jacks provide immediate feedback on the rectification flame signal for faster commissioning.
- Robust Alarm Interface: A dedicated alarm circuit triggers immediately upon safety lockout to alert building management or plant operators.
Common Questions Regarding the Fireye M4RT1:
Can this control be used with UV scanners?
No, the M4RT1 is specifically designed for flame rod detection (rectification). For ultraviolet sensing applications, a compatible Fireye UV control model must be selected.
What is the difference between recycle and non-recycle modes on this unit?
In recycle mode, a loss of flame signal during the run cycle will initiate a restart sequence; in non-recycle mode, any flame failure results in an immediate safety lockout requiring a manual reset.
Is a separate amplifier required for the M4RT1?
No, the flame signal amplifier is integrated directly into the M4RT1 relay board, tuned specifically for flame rod sensors.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
