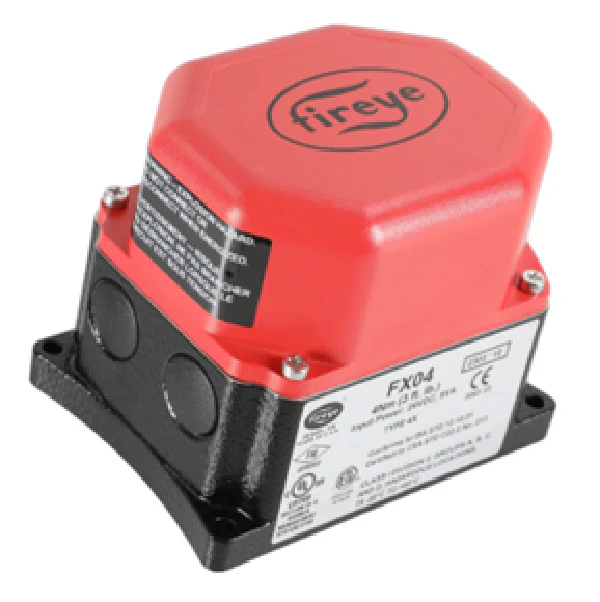

Fireye FX04 Motor
The Fireye FX04 is a precision-engineered 24VDC servo motor designed specifically for high-accuracy fuel and air ratio control within the Nexus Integrated Controller ecosystem. This high-torque actuator features an integrated terminal block for streamlined field wiring and utilizes a dedicated RS-485 Modbus communication protocol to ensure seamless integration with the Nexus NX6100 and PPC6000 series. Engineered for industrial combustion applications, the FX04 motor delivers 4 Nm (3 ft-lb) of torque with a 30-second stroke timing for 90 degrees, providing the repeatable positioning required for tight O2 trim adjustments and thermal efficiency. The NEMA 4 (IP65) rated enclosure protects internal carbon-track potentiometers and solid-state drive components from harsh boiler room environments. When replacing older Fireye actuators, technicians should verify the drive shaft alignment and address any mechanical linkage binding to prevent overcurrent trips on the 24VDC bus.
Key Benefits for Technicians:
- High-Precision Positioning: Feedback potentiometers provide 0.1-degree accuracy for precise combustion fuel-air ratio control.
- Robust 24VDC Operation: Low-voltage DC drive reduces electrical interference and simplifies power requirements within the control cabinet.
- Rugged NEMA 4 Enclosure: Designed to withstand the high ambient temperatures and moisture levels common in industrial mechanical rooms.
- Direct Nexus Compatibility: Plug-and-play functionality with Fireye Nexus NX6100 controllers ensures fast commissioning and reliable Modbus communication.
- Simplified Wiring: The internal terminal block allows for direct landings without the need for external junction boxes or specialized proprietary connectors.
Common Installation Questions:
Is the Fireye FX04 compatible with my existing linkage hardware?
The FX04 uses a standard 10mm keyed shaft. It is designed to replace most Nema-style actuators in Nexus loops, but you must ensure the crank arms are properly aligned to prevent side-loading on the motor bearings.
How do I address communication errors between the motor and the NX6100?
Communication issues are usually tied to incorrect Modbus addressing or shield grounding. Ensure the 24VDC servo motor is assigned a unique node address and that the communication wiring utilizes twisted-pair shielded cable grounded at the controller end only.
Can this motor be mounted in any orientation?
While the FX04 is rated for various positions, it is best practice to mount the motor with the conduit openings facing downward to prevent moisture ingress through the electrical connections.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $644.22
-65%$644.22
$225.48Fireye FX04 Motor
The Fireye FX04 is a precision-engineered 24VDC servo motor designed specifically for high-accuracy fuel and air ratio control within the Nexus Integrated Controller ecosystem. This high-torque actuator features an integrated terminal block for streamlined field wiring and utilizes a dedicated RS-485 Modbus communication protocol to ensure seamless integration with the Nexus NX6100 and PPC6000 series. Engineered for industrial combustion applications, the FX04 motor delivers 4 Nm (3 ft-lb) of torque with a 30-second stroke timing for 90 degrees, providing the repeatable positioning required for tight O2 trim adjustments and thermal efficiency. The NEMA 4 (IP65) rated enclosure protects internal carbon-track potentiometers and solid-state drive components from harsh boiler room environments. When replacing older Fireye actuators, technicians should verify the drive shaft alignment and address any mechanical linkage binding to prevent overcurrent trips on the 24VDC bus.
Key Benefits for Technicians:
- High-Precision Positioning: Feedback potentiometers provide 0.1-degree accuracy for precise combustion fuel-air ratio control.
- Robust 24VDC Operation: Low-voltage DC drive reduces electrical interference and simplifies power requirements within the control cabinet.
- Rugged NEMA 4 Enclosure: Designed to withstand the high ambient temperatures and moisture levels common in industrial mechanical rooms.
- Direct Nexus Compatibility: Plug-and-play functionality with Fireye Nexus NX6100 controllers ensures fast commissioning and reliable Modbus communication.
- Simplified Wiring: The internal terminal block allows for direct landings without the need for external junction boxes or specialized proprietary connectors.
Common Installation Questions:
Is the Fireye FX04 compatible with my existing linkage hardware?
The FX04 uses a standard 10mm keyed shaft. It is designed to replace most Nema-style actuators in Nexus loops, but you must ensure the crank arms are properly aligned to prevent side-loading on the motor bearings.
How do I address communication errors between the motor and the NX6100?
Communication issues are usually tied to incorrect Modbus addressing or shield grounding. Ensure the 24VDC servo motor is assigned a unique node address and that the communication wiring utilizes twisted-pair shielded cable grounded at the controller end only.
Can this motor be mounted in any orientation?
While the FX04 is rated for various positions, it is best practice to mount the motor with the conduit openings facing downward to prevent moisture ingress through the electrical connections.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
