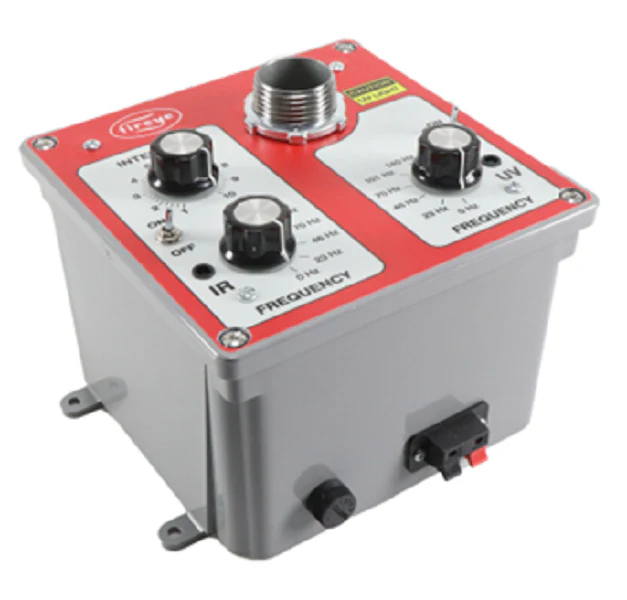

Fireye FS-2 Flame Simulator
The Fireye FS-2 Flame Simulator is a critical diagnostic tool for field technicians and instrument engineers tasked with the maintenance of industrial flame scanners. This flame scanner tester eliminates the need for hazardous live-fire testing by generating precise ultraviolet (UV) and infrared (IR) light energy to verify the operational integrity of flame safeguard controls. The unit features selectable flicker frequencies at 23Hz, 46Hz, 70Hz, 101Hz, and 140Hz, allowing for deep system diagnostics and performance validation of the Fireye burner management system. It is equipped with a standard 1-inch NPT sight pipe, ensuring direct compatibility with Fireye InSight and Phoenix Series scanners. By utilizing the integrated 24VDC power supply and variable intensity controls, contractors can simulate various burner conditions to confirm flame-on/flame-off thresholds and frequency response without disrupting plant production or utilizing actual fuel sources.
Key Benefits
- Broad Compatibility: Supports a wide range of screw-on axial scanners, including InSight I, II, 4, Phoenix Series 2, 65UV5, and 45UV5 models.
- Dual-Spectrum Simulation: Features independent IR (940nm/1300nm) and UV (185nm-400nm) sources to test multi-sensor heads.
- Field Ready: Compact, rugged build designed for the industrial environment, operating effectively between 0??C and 50??C.
- Precision Testing: Adjustable flicker frequencies allow for the exact matching of specific burner flame characteristics.
- Auxiliary Power: Includes a front-panel 24VDC source (900mA) to power DC-driven scanners during bench testing.
Common Questions
Can I use the FS-2 to test UV1A or 48PT2 scanners?
Yes, though these models require a 1-inch to 1/2-inch NPT pipe adaptor (not included) to mate with the simulator?ÇÖs integrated sight pipe.
Does the unit require a specific voltage for operation?
The FS-2 is highly versatile, accepting a wide range of supply voltages from 85VAC to 305VAC at 47Hz to 440Hz, making it suitable for various international power standards.
Is this simulator intended for continuous use?
This device is engineered for intermittent diagnostic testing. To maximize the life of the internal UV and IR light-emitting components, it is recommended to limit continuous testing sessions to 1?Çô2 hours.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
