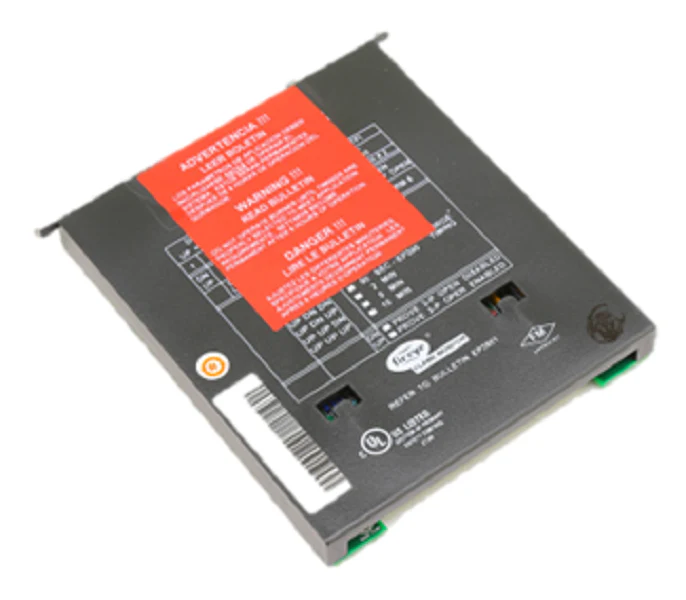

Fireye EP390 Module
The Fireye EP390 is a specialized Flame-Monitor programmer module engineered for use with the E110 Flame-Monitor chassis. This non-modulating programmer is designed for commercial and industrial burner applications where precise timing and sequence control are critical. The Fireye EP390 timing sequence features a fixed 90-second purge interval, ensuring thorough combustion chamber ventilation before ignition. It provides a 5-second/10-second trial for ignition (TFI) sequence, specifically calibrated for pilots and main burners. This module facilitates a controlled automatic burner sequencing process, including pre-purge, ignition, and flame monitoring. Built for high-reliability environments, the EP390 programmer integrates seamlessly into existing Flame-Monitor systems, offering contractors a robust solution for managing flame safeguards without the complexity of modulation. Its performance is optimized for HVACR control systems that require strict adherence to safety protocols during the startup and operation phases of high-capacity burner cycles.
Key Technical Benefits
- Standardized Purge Timing: Fixed 90-second purge ensures consistent safety compliance and chamber clearing.
- Dual-Stage TFI: Reliable 5/10-second ignition trials accommodate various burner configurations.
- Non-Modulating Design: Simplified on/off burner control logic reduces potential failure points in non-modulating systems.
- Direct Chassis Integration: Plug-and-play compatibility with Fireye E110 chassis for rapid field replacement.
- Industrial Grade Durability: Engineered to withstand the thermal and electrical stresses of continuous industrial boiler operation.
Common Questions
Does the EP390 support modulating motor control?
No, the Fireye EP390 is a non-modulating module. It is designed for applications requiring fixed sequencing rather than variable firing rates.
What is the difference between the EP390 and other E110 programmers?
The primary distinction lies in the 90-second purge time and specific TFI timings. Always verify your specific burner requirements against the timing logic of the programmer.
Can this module be used for intermittent or interrupted pilots?
Yes, the EP390 terminal logic supports standard pilot configurations within its 5 and 10-second ignition windows, typically found in Fireye flame safeguard setups.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
