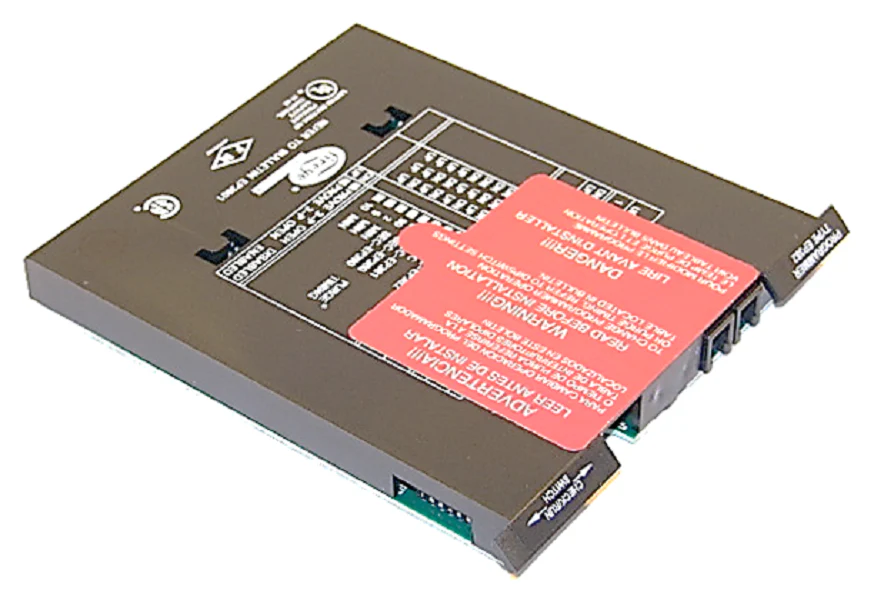

Fireye EP382 Module
The Fireye EP382 Programmer Module is a critical microprocessor-based component designed for the Fireye Flame-Monitor burner management system. Engineered for compatibility with EB700 and E110 chassis, this module delivers essential start-up programming, safe-start checks, and continuous flame monitoring. As a non-modulating programmer, the EP382 is specifically configured for 0 second purge timing (minimum) with selectable 5 and 10 second Trial for Ignition (TFI) periods. It features a versatile design allowing for either recycle or non-recycle operation via internal dipswitch settings, ensuring it meets specific jurisdictional or application-specific safety requirements. The unit facilitates high-integrity flame supervision by monitoring the running interlock circuit, including limit switches and fuel pressure switches. Professional technicians utilize the integrated RJ45 connector for seamless interfacing with ED510 display modules, providing clear diagnostic data and lockout history to streamline troubleshooting and system commissioning in the field.
Key Benefits for Technicians:
- Field-Selectable Flexibility: Easily configure recycle or non-recycle modes and TFI timings to match varied burner requirements.
- Enhanced Diagnostics: Access real-time burner cycles, run hours, and lockout history via the ED510 alpha-numeric display for rapid fault isolation.
- System Reliability: Advanced safe-start check and flame failure response timing (FFRT) of 4 seconds provide robust safety supervised control.
- Simplified Integration: Designed for plug-in installation into standard Fireye wiring bases, reducing downtime during module replacement.
Common Questions:
Does the Fireye EP382 support fuel modulation? No, the EP382 is a NoMod (no modulation) programmer. It does not provide a firing rate motor circuit for controlling a modulator.
Can I adjust the purge timing on this module? The base purge timing is 0 seconds, but it can be increased via the onboard dipswitches to meet specific ventilation requirements before ignition.
What chassis is compatible with the EP382? This module is primarily designed for use with the Fireye E110 Flame-Monitor and EB700 chassis. Always verify your current baseplate wiring before installation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $1,663.78
-65%$1,663.78
$582.32Fireye EP382 Module
