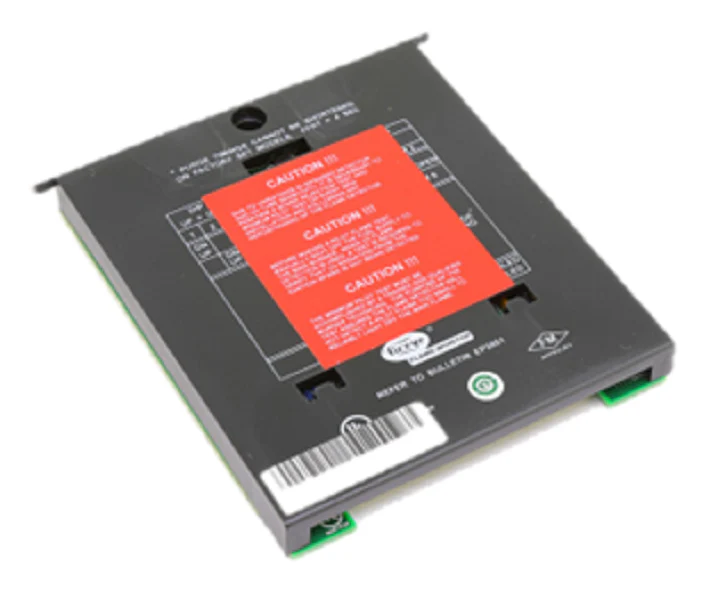

Fireye EP380 Module
The Fireye EP380 is a specialized microprocessor-based programmer module designed for use within the Flame-Monitor burner management system. This EP-style plug-in module provides a fixed 30-second purge cycle and dual-trial ten-second ignition (TFI) timing, specifically engineered for non-modulating burner applications. As a critical component of the Fireye FLAME-MONITOR chassis, it handles the sequencing of burner startup, monitoring the flame signal and safety interlocks throughout the firing cycle. The EP380 is often selected by technicians for systems requiring a consistent fixed purge time without the complexity of an integrated firing rate motor control or modulation logic.
For contractors servicing industrial or commercial boilers, the Fireye EP380 offers a precise 5/10 TFI sequence, ensuring stable pilot and main flame establishment within regulated safety parameters. It interfaces seamlessly with intermittent ignition configurations and is compatible with standard Fireye flame scanners (UV, infrared, or flame rod) depending on the E110 chassis configuration. This heavy-duty combustion control module eliminates mechanical timing drift, providing repeatable performance in high-demand heating and process environments. When replacing older Fireye programmers, verify that your safety limit string and operating controls align with the EP380 terminal assignments to ensure proper sequencing and prevent lockout conditions.
Key Benefits for Technicians
- Fixed 30-Second Purge: Ensures OSHA and NFPA compliance for chamber clearing without requiring manual adjustments or external timers.
- Non-Modulating Logic: Optimized for on-off burner operations, simplifying the wiring and commissioning process for standard thermal loads.
- LED Diagnostics: Provides immediate visual feedback on system status and flame signal strength when paired with the E110 display.
- Rapid Replacement: The plug-in architecture allows for quick field service swaps, minimizing downtime during critical heating failures.
- Robust Safety Interlocks: Continuously monitors running interlocks and air pressure switches to prevent unsafe firing conditions.
Common Questions
Does the EP380 support air-fuel ratio modulation?
No, this module is a NO MOD (non-modulating) unit. For systems requiring a firing rate motor control or modulating control, you must use an EP160 or EP170 series module.
What is the difference between the 5-second and 10-second TFI on this unit?
The Fireye EP380 provides a 5-second trial for pilot ignition and a 10-second trial for the main flame, offering a specific ignition window suitable for medium-to-large burners.
Can I use an EP380 in an old Fireye D-Series chassis?
The EP380 is part of the Flame-Monitor family and requires the EB700 type chassis. It is not backwards compatible with the older mechanical M-Series or D-Series bases without a full system upgrade.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
