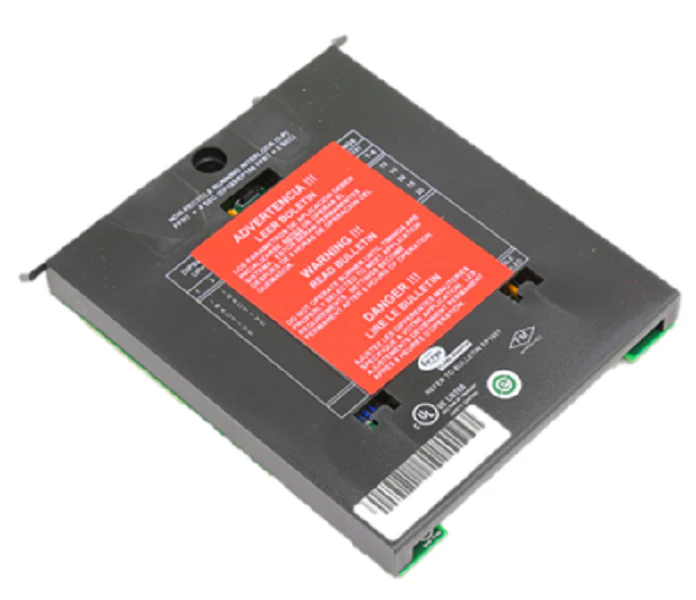

Fireye EP170 Module
The Fireye EP170 is a microprocessor-based plug-in programmer module designed for use with the Flame-Monitor burner management system. Engineered for commercial and industrial applications, this combustion control module provides a fixed 30-second prepurge period, ensuring the combustion chamber is cleared of combustible gases before ignition. The unit features a selectable 5 or 10-second Trial for Ignition (TFI) period for the pilot flame, followed by a 10-second TFI for the main flame burner. Operating within the Flame-Monitor base chassis, the EP170 manages critical timing sequences and safety interlocks for automated burner operation. This non-recycle programmer is built for reliability in high-cycle environments, utilizing heavy-duty internal circuitry to handle environmental stressors. It is compatible with Fireye E110 systems and communicates technical status through the ED510 display interface, making it a standard for technicians managing industrial boiler controls and HVACR reliability.
Key Technical Benefits
- Fixed 30-Second Prepurge: Ensures consistent safety protocols and meets specific code requirements for ventilation.
- Versatile TFI Timing: Field-selectable 5 or 10-second pilot ignition windows provide flexibility for various burner configurations.
- Non-Recycle Operation: Enhances safety by requiring a manual reset or system recycle upon flame failure.
- Solid-State Microprocessor Control: Reduces mechanical wear and improves timing accuracy compared to older electromechanical models.
- Internal Diagnostics: Seamlessly integrates with ED510 and E500 communication modules for rapid troubleshooting on-site.
Common Technical Questions
Does the EP170 require a specific chassis?
Yes, the EP170 must be installed in a Fireye EB700 Flame-Monitor chassis. It is not backwards compatible with the older D-Series bases without the appropriate adapter or chassis upgrade.
What is the difference between a recycle and non-recycle module?
As a non-recycle module, the EP170 will lockout the burner upon a loss of flame signal during the run cycle, preventing an immediate automatic restart attempt for increased protection.
Can the purge timing be field-adjusted?
No, the 30-second prepurge timing on the EP170 is fixed. If your application requires variable or longer purge times, you should consult the EP160 or EP200 series specifications.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
