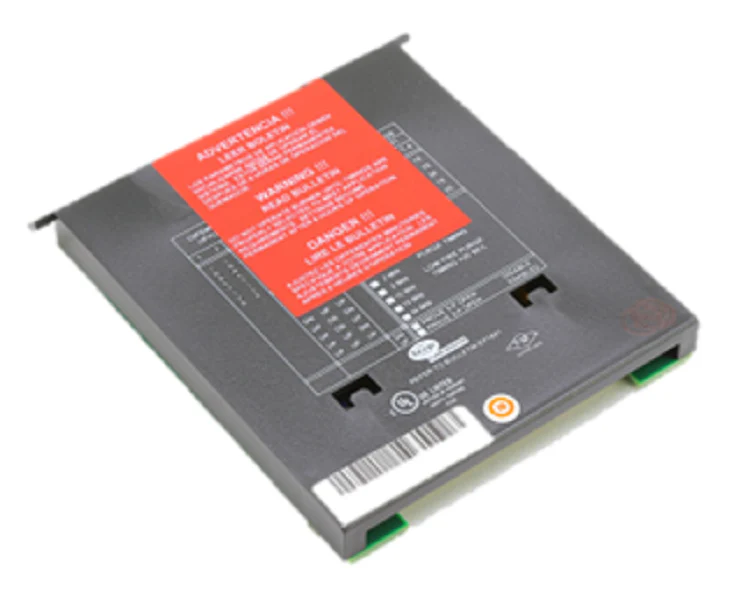

Fireye EP165 Module
The Fireye EP165 Programmer Module is a high-performance flame safeguard control designed for use with E100 and E110 Flame-Monitor chassis. Engineered for precise burner management, this module features a fixed 30-second prepurge and a 10-second trial for ignition (TFI) to ensure safe and reliable light-off sequences. As a non-recycle programmer, it initiates a safety lockout upon flame failure, specifically within a rapid 2-second flame failure response time (FFRT). Built for industrial burner controls, it includes pilot stabilization and modulation capabilities, supporting a firing rate motor circuit for high and low fire positioning. The Fireye EP165 is equipped with a Check-Run switch for easier commissioning and internal diagnostics that track burner cycles and lockout history via the ED510 display. This microprocessor-based module ensures flame monitoring supervision while maintaining strict compliance with safety interlock circuits, including air flow and fuel pressure switches.
Key Benefits- Enhanced Safety: The 2-second FFRT provides immediate de-energization of fuel valves in the event of flame loss.
- Operational Precision: Features pilot stabilization for more reliable ignition in demanding combustion environments.
- Modulation Support: Integrated circuit for modulation motor control ensures efficient firing rate adjustments.
- Contractor Serviceability: The Check-Run switch allows technicians to pause sequences for troubleshooting interlocks without recycling.
- Detailed Diagnostics: Compatible with ED510 display to view comprehensive lockout history and system hours.
Is the Fireye EP165 compatible with my existing E110 chassis?
Yes, the EP165 is a standard plug-in module designed specifically for the Fireye Flame-Monitor E100 and E110 series wiring bases.
What does the non-recycle feature mean for my burner?
If the running interlock circuit opens or a flame failure occurs, the Fireye EP165 will lock out immediately rather than attempting an automatic restart.
How do I change the purge timing on the EP165?
While the 30-second purge is standard, timings can be adjusted using the dipswitches located on the side of the programmer module.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
