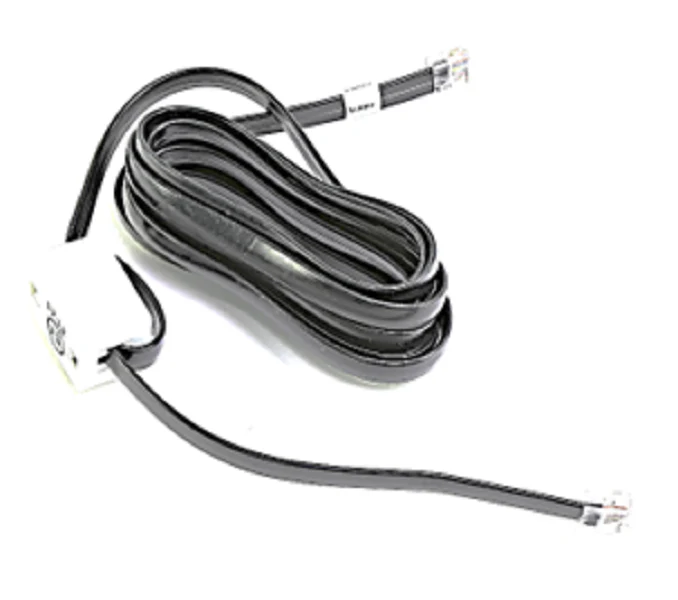

Fireye ED580-8 Cable
The Fireye ED580-8 is a heavy-duty, 8-foot RJ45 communication cable engineered for connecting ED510 display modules to Flame-Monitor burner management systems. As a critical component for remote mounting, this cable allows technicians to relocate the interface to a convenient monitoring station or NEMA-rated enclosure. It is fully compatible with EP programmers (engineering code 28+) and EPD programmers (engineering code 02+), ensuring seamless data transmission for burner sequencing, flame signal strength, and lockout history.
Designed for the harsh environments of industrial boiler rooms, the ED580-8 features dual high-quality connectors and a noise-resistant core to prevent EMI/RFI interference from disrupting sensitive flame safeguard signals. Its length provides the necessary reach for standard control cabinet configurations, maintaining the integrity of RS485 communications between the EB700 chassis and the remote display. This cable is essential for installers utilizing the 129-145-2 remote mounting kit to enable expanded annunciation and diagnostic oversight without needing to access the main control chassis directly.
Key Benefits- Universal Compatibility: Specifically designed for Fireye Flame-Monitor and MicroM systems using EP or EPD style programmers.
- Interference Mitigation: Built with a ferrite core to minimize electrical noise transients that can cause communication gaps between display and programmer.
- Extended Reach: The 8-foot length supports versatile remote mounting, allowing the ED510 to be placed at eye level for easier troubleshooting.
- Plug-and-Play Integration: Standardized RJ45 connectors ensure a secure, seated connection for reliable 120 VAC signal monitoring and non-volatile memory access.
What happens if the ED580-8 cable is disconnected during operation?
If communication is lost for more than 10 seconds, the ED510 display will show a communication failure message. While the burner management control continues its sequence based on its internal logic, real-time diagnostic data and first-out annunciation will not be visible until the connection is restored.
Can I extend this cable beyond 8 feet?
For distances exceeding 8 feet, an ED610 adapter is required. Using standard RJ45 couplers without the proper Fireye adapter can introduce signal degradation and electrical noise, potentially leading to intermittent lockout displays.
Is this cable compatible with all engineering codes?
This cable requires EP style programmers with engineering code 28 or later, or EPD style programmers with engineering code 02 or later. Always check the side label of your programmer for the engineering code before installation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $81.10
-65%$81.10
$28.38Fireye ED580-8 Cable
The Fireye ED580-8 is a heavy-duty, 8-foot RJ45 communication cable engineered for connecting ED510 display modules to Flame-Monitor burner management systems. As a critical component for remote mounting, this cable allows technicians to relocate the interface to a convenient monitoring station or NEMA-rated enclosure. It is fully compatible with EP programmers (engineering code 28+) and EPD programmers (engineering code 02+), ensuring seamless data transmission for burner sequencing, flame signal strength, and lockout history.
Designed for the harsh environments of industrial boiler rooms, the ED580-8 features dual high-quality connectors and a noise-resistant core to prevent EMI/RFI interference from disrupting sensitive flame safeguard signals. Its length provides the necessary reach for standard control cabinet configurations, maintaining the integrity of RS485 communications between the EB700 chassis and the remote display. This cable is essential for installers utilizing the 129-145-2 remote mounting kit to enable expanded annunciation and diagnostic oversight without needing to access the main control chassis directly.
Key Benefits- Universal Compatibility: Specifically designed for Fireye Flame-Monitor and MicroM systems using EP or EPD style programmers.
- Interference Mitigation: Built with a ferrite core to minimize electrical noise transients that can cause communication gaps between display and programmer.
- Extended Reach: The 8-foot length supports versatile remote mounting, allowing the ED510 to be placed at eye level for easier troubleshooting.
- Plug-and-Play Integration: Standardized RJ45 connectors ensure a secure, seated connection for reliable 120 VAC signal monitoring and non-volatile memory access.
What happens if the ED580-8 cable is disconnected during operation?
If communication is lost for more than 10 seconds, the ED510 display will show a communication failure message. While the burner management control continues its sequence based on its internal logic, real-time diagnostic data and first-out annunciation will not be visible until the connection is restored.
Can I extend this cable beyond 8 feet?
For distances exceeding 8 feet, an ED610 adapter is required. Using standard RJ45 couplers without the proper Fireye adapter can introduce signal degradation and electrical noise, potentially leading to intermittent lockout displays.
Is this cable compatible with all engineering codes?
This cable requires EP style programmers with engineering code 28 or later, or EPD style programmers with engineering code 02 or later. Always check the side label of your programmer for the engineering code before installation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
