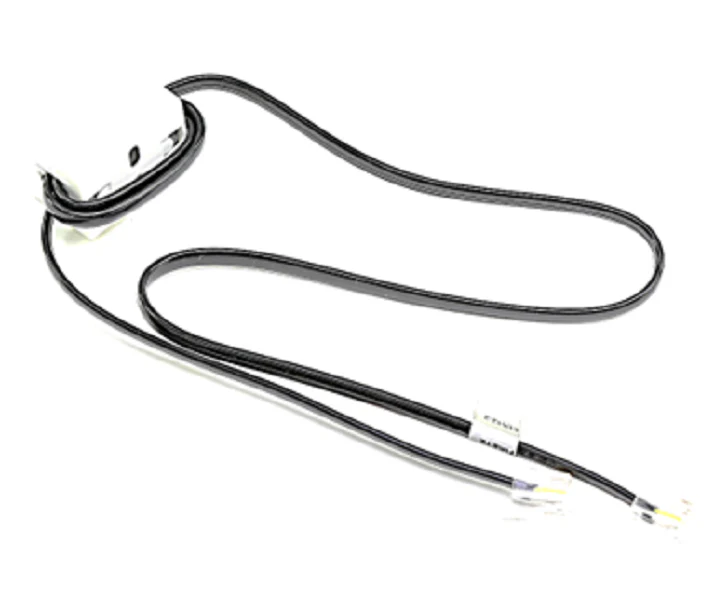

Fireye ED512-2 Cable
For technical contractors managing burner controls, the Fireye ED512-2 is a critical 2-foot RJ12 cable connector designed for stable data transmission in industrial environments. Engineered with RJ12 4P4C connectors on both ends, this cable facilitates the physical link between Fireye Flame-Monitor controls and expansion modules or communication interfaces. For technicians utilizing the Fireye E300 Expansion Module, the ED512-2 is required when customizing lockout alarm messages using a PC and the EC485 converter. This industrial interface cable ensures that interlock supervision data flows correctly to the ED510 display module, allowing for precise "first out" annunciation of recycling and running safety interlocks. Its 2-foot length provides a compact footprint for internal panel wiring, minimizing cable clutter while maintaining high signal integrity. Whether you are performing a Fireye burner control installation or field-programming EP and EPD programmers (Engineering code 28 or later), this heavy-duty Fireye communication cable provides the reliable physical layer connection necessary for complex flame safeguard systems.
Key Benefits for Technicians:
- Precise Compatibility: Specifically designed for Fireye Flame-Monitor systems and E300 expansion modules.
- Efficient Troubleshooting: Enables the customization of 40-character lockout messages to identify specific circuit limits.
- Durable Construction: Built with shielded RJ12 connectors to withstand the high-interference environment of an industrial boiler room.
- Streamlined Integration: A 2-foot span is ideal for connecting the ED610 multi-port connector to the E500 communication interface.
Common Questions Regarding the Fireye ED512-2:
Which Fireye programmers are compatible with this cable?
The ED512-2 works with EP programmers (Engineering code 28 or above) and EPD programmers when integrating with the E500 interface.
Can I use this cable for custom E300 message programming?
Yes, this cable is a required component for technicians using an IBM-compatible PC and E300 software to customize lockout alarm messages.
What is the primary function of the RJ12 4P4C connection?
It serves as the dedicated data link for interlock supervision and diagnostic communication within the flame safeguard control network.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
