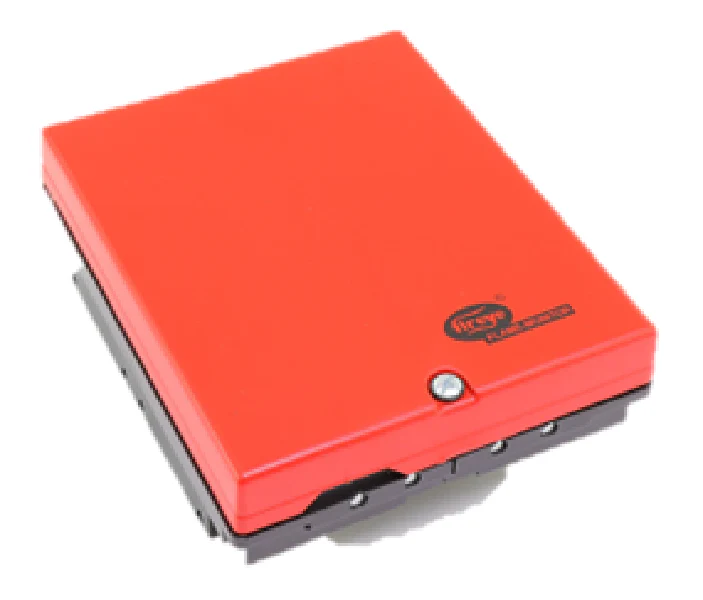

Fireye E300 Module
The Fireye E300 expansion module is a critical component for industrial combustion systems, designed specifically for use with the Flame-Monitor and MicroM systems. This module expands the capabilities of the primary flame safeguard by providing additional interlock inputs and enhanced diagnostic monitoring. Engineered for DIN rail mounting, the Fireye E300 facilitates the integration of limit switches and pressure controls into the burner management system (BMS), ensuring high-reliability sequencing. It utilizes modbus communication protocols to relay real-time status data, making it essential for HVACR contractors managing complex boiler or furnace applications. By providing precise monitoring of the combustion control circuit, this expansion unit allows for faster troubleshooting and reduced downtime. The rugged construction and high-voltage tolerance ensure stable performance in demanding mechanical rooms. When configuring Fireye burner controls, the E300 provides the necessary scalability for multi-interlock systems requiring rigorous safety logic and operational feedback.
- Enhanced Diagnostic Capability: Identifies specific open-limit conditions within the safety string for rapid fault isolation.
- Seamless System Integration: Fully compatible with existing Fireye chassis via high-speed communication bus.
- Rugged Industrial Design: Built to withstand commercial boiler room environments and electrical noise.
- Modular Scalability: Allows for expanded I/O counts without replacing the primary control unit.
- Simplified Wiring: Terminal block configuration designed for standard 14-18 AWG field wiring.
Common Questions
How do I address the Fireye E300 module within the system?
The module is typically addressed via dip switch settings on the unit, allowing the primary programmer to recognize the specific expansion node on the communication string.
Can the E300 be used to monitor both high and low gas pressure switches?
Yes, the individual inputs can be mapped to various limit controls, providing discrete feedback for each point in the safety circuit.
What is the maximum distance for mounting the expansion module from the main control?
While typically DIN-mounted adjacent to the controller, the dedicated communication cable supports standard cabinet lengths; refer to specific Fireye wiring diagrams for maximum bus distances.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
