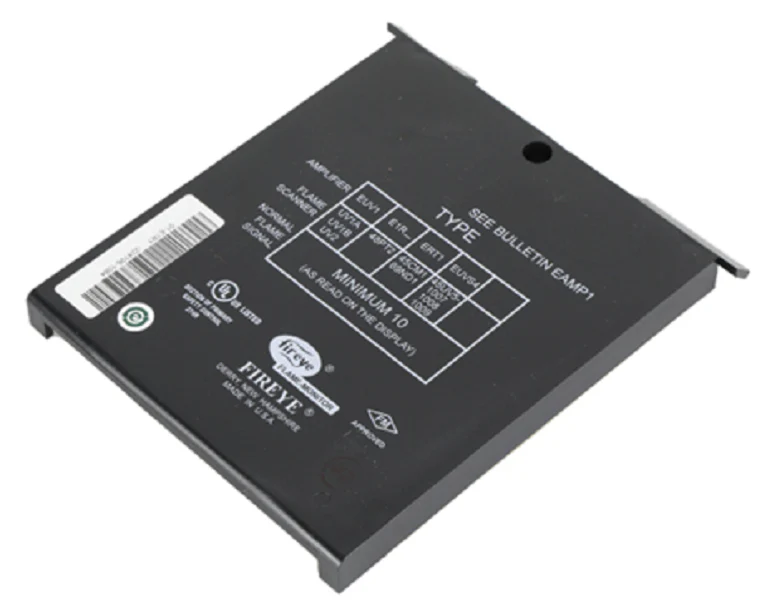

Fireye E1R1 Amplifier
The Fireye E1R1 Amplifier is a critical infrared autocheck amplifier module designed for seamless integration with the Fireye Flame-Monitor E100 and E110 series burner management systems. Engineered specifically for use with the 48PT2 infrared flame scanner, this industrial-grade module provides high-sensitivity flame signal processing for oil, gas, and combination fuel burners. Unlike standard rectification modules, the Fireye E1R1 utilizes proprietary AutoCheck technology, which performs a continuous electronic verification of the flame detection circuit. This self-checking mechanism is essential for high-duty cycle applications, effectively identifying component failure or infrared scanner degradation to prevent unsafe firing conditions.
Housed in a rugged plug-in chassis, the E1R1 module is built for the demanding environments of boiler rooms and industrial process heating. It features built-in oil fog rejection circuitry, distinguishing it from the E1R3 variant, making it the preferred choice for general-purpose oil and gas applications where background radiation or atomized oil mist might otherwise cause a false flame signal. When configuring your Flame-Monitor system, ensure the amplifier module is correctly seated in the EB700 wiring base to maintain a reliable 120 VAC connection and optimal flame signal strength for the burner sequence controller.
Key Benefits for Technicians- System Compatibility: Fully compatible with Fireye E100, E110, and EB700 chassis for easy field replacement.
- AutoCheck Reliability: Continuously monitors the health of the 48PT2 scanner and internal circuitry.
- Interference Mitigation: Superior infrared signal filtering reduces nuisance lockouts caused by oil fog or hot refractory IR signatures.
- Status Monitoring: Delivers precise flame signal data to the ED150 or ED510 display modules for accurate troubleshooting.
- Plug-and-Play Design: Simplifies maintenance with a keyed module footprint that prevents incorrect installation.
- Can I use the E1R1 with a UV scanner? No, the Fireye E1R1 is exclusively designed for infrared 48PT2 scanners. For UV applications, you must use a EUV1 or EUVS4 amplifier module.
- What is the difference between E1R1 and E1R3? The E1R1 includes oil fog rejection for standard fuel oil applications, whereas the E1R3 is designed for solid fuel or specialized applications where that filtering is not required.
- How do I test the flame signal? Use a high-impedance DC voltmeter across the test jacks on the front of the E110/E100 chassis or view the signal on the linked display module.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Fireye E1R1 Amplifier
The Fireye E1R1 Amplifier is a critical infrared autocheck amplifier module designed for seamless integration with the Fireye Flame-Monitor E100 and E110 series burner management systems. Engineered specifically for use with the 48PT2 infrared flame scanner, this industrial-grade module provides high-sensitivity flame signal processing for oil, gas, and combination fuel burners. Unlike standard rectification modules, the Fireye E1R1 utilizes proprietary AutoCheck technology, which performs a continuous electronic verification of the flame detection circuit. This self-checking mechanism is essential for high-duty cycle applications, effectively identifying component failure or infrared scanner degradation to prevent unsafe firing conditions.
Housed in a rugged plug-in chassis, the E1R1 module is built for the demanding environments of boiler rooms and industrial process heating. It features built-in oil fog rejection circuitry, distinguishing it from the E1R3 variant, making it the preferred choice for general-purpose oil and gas applications where background radiation or atomized oil mist might otherwise cause a false flame signal. When configuring your Flame-Monitor system, ensure the amplifier module is correctly seated in the EB700 wiring base to maintain a reliable 120 VAC connection and optimal flame signal strength for the burner sequence controller.
Key Benefits for Technicians- System Compatibility: Fully compatible with Fireye E100, E110, and EB700 chassis for easy field replacement.
- AutoCheck Reliability: Continuously monitors the health of the 48PT2 scanner and internal circuitry.
- Interference Mitigation: Superior infrared signal filtering reduces nuisance lockouts caused by oil fog or hot refractory IR signatures.
- Status Monitoring: Delivers precise flame signal data to the ED150 or ED510 display modules for accurate troubleshooting.
- Plug-and-Play Design: Simplifies maintenance with a keyed module footprint that prevents incorrect installation.
- Can I use the E1R1 with a UV scanner? No, the Fireye E1R1 is exclusively designed for infrared 48PT2 scanners. For UV applications, you must use a EUV1 or EUVS4 amplifier module.
- What is the difference between E1R1 and E1R3? The E1R1 includes oil fog rejection for standard fuel oil applications, whereas the E1R3 is designed for solid fuel or specialized applications where that filtering is not required.
- How do I test the flame signal? Use a high-impedance DC voltmeter across the test jacks on the front of the E110/E100 chassis or view the signal on the linked display module.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
