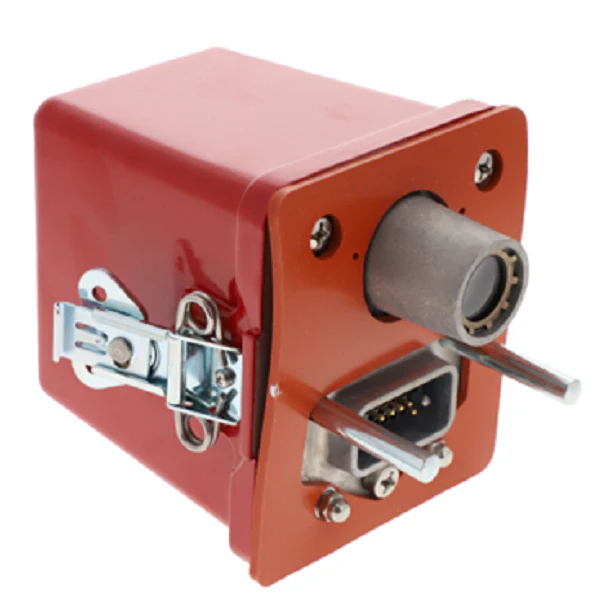

Fireye DE701-007A Scanner
The Fireye DE701-007A Scanner is a high-sensitivity ultraviolet (UV) flame detector designed specifically for integration with the C9707A Series electronic assemblies. Engineered for industrial burner management systems, this UV flame scanner monitors the ultraviolet radiation emitted by combustion flames, providing reliable flame-on/flame-off signals to Fireye Flame-Monitor or MicroM control systems. The sensor is optimized for intermittent pilot or continuous burner operations where detecting precise spectral peaks is critical for safety and operational efficiency.
Built to withstand demanding mechanical environments, the DE701-007A utilizes a glass-to-metal sealed UV sensor tube to prevent contamination and maintain vacuum integrity under high-temperature fluctuations. The electrical assembly features a rugged housing that ensures stable signal transmission to the primary control, minimizing nuisance shutdowns caused by electrical noise or weak flame signals. Installation requires careful alignment to the line-of-sight of the flame to maximize UV radiation detection, ensuring the burner operates within strict safety parameters during the ignition and main flame cycles.
- Optimized Spectral Sensitivity: Specifically tuned for ultraviolet wavelengths to distinguish between actual flame presence and hot refractory backgrounds.
- Rugged Construction: Designed for long-term deployment in industrial boiler controls and commercial heating systems for maximum uptime.
- Seamless Integration: Direct compatibility with C9707A series mounts, simplifying field replacements and system upgrades for technicians.
- High-Temperature Stability: Maintains signal accuracy across a broad range of ambient operating temperatures found in mechanical rooms.
How do I troubleshoot a weak flame signal on the DE701-007A?
First, inspect the scanner lens and sight pipe for soot accumulation or debris. Ensure the UV scanner alignment is directly viewing the first third of the flame where UV intensity is highest. If the signal remains low, verify the input voltage from the primary control and check for any moisture inside the C9707A assembly.
Can this scanner be used with a 70D40 or 70D41 Fireye control?
Yes, the Fireye DE701-007A is designed to interface with common Fireye flame safeguard controls that require a non-self-checking UV signal. Always verify the specific terminal connections in your wiring diagram to ensure proper signal processing.
What is the difference between the DE701-007A and standard UV scanners?
The DE701-007A is a specific electronic assembly designated for high-sensitivity applications, often requiring specific mounting hardware and electrical connectors found in the Fireye C9707A series, offering more precision than generic ultraviolet detectors.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
