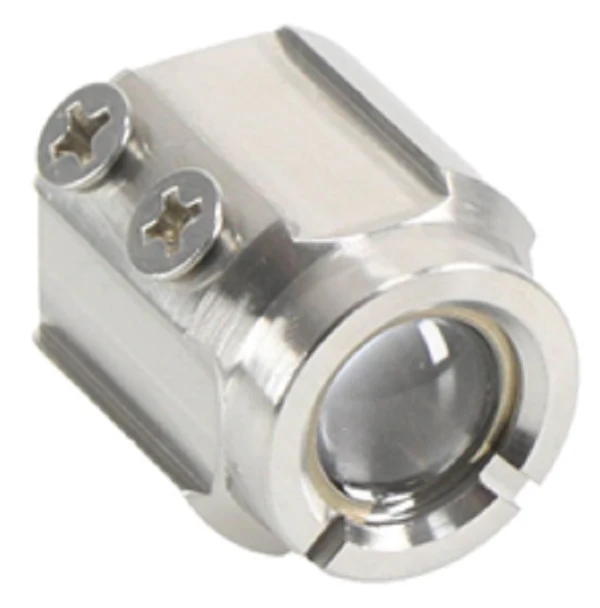

Fireye DE601-20B1 Lens Assembly
The Fireye DE601-20B1 is a precision-engineered 5-degree offset lens assembly designed for high-performance industrial flame monitoring. This specific optical component is utilized with Fireye integrated flame scanners, such as the InSight II series, to optimize the flame signal signal-to-noise ratio in challenging burner configurations. By providing a 5-degree angular adjustment, this assembly allows technicians to fine-tune the scanner's line of sight toward the primary combustion zone, effectively ignoring background radiation and neighboring burner signals. The assembly features a robust housing built to withstand the thermal stressors of HVACR industrial furnace applications and ensures reliable ultraviolet or infrared flame detection. When performing a Fireye scanner installation, utilizing the correct offset lens is critical for preventing nuisance shutdowns and achieving stable burner management system (BMS) performance. This genuine OEM part ensures exact fitment and optical alignment required for safety-critical monitoring in power generation and steam boiler environments.
Key Benefits
- Optimized Optical Path: The 5-degree offset allows for precise targeting of the target flame, mitigating interference from surrounding ignition sources.
- Industrial Durability: Constructed to meet the rigorous demands of boiler room environments and high-temperature burner fronts.
- Enhanced Signal Stability: Minimizes erratic flame signal readings by focusing the scanner's field of view directly on the flame envelope.
- System Compatibility: Designed specifically for seamless integration with Fireye InSight scanners and related mounting hardware.
- Simplified Maintenance: Facilitates easier alignment during commissioning without requiring complex mechanical modifications to the sight pipe.
Common Questions
How do I determine if a 5-degree offset lens is required for my scanner?
If your flame scanner is picking up signals from adjacent burners or if the physical sight pipe alignment does not point directly at the primary combustion zone, the Fireye DE601-20B1 provides the necessary angular correction to isolate the specific flame being monitored.
Is the DE601-20B1 compatible with all Fireye scanners?
This lens assembly is primarily designed for the InSight and InSight II product lines. Ensure your scanner housing and mounting flange are compatible with the DE601 series specifications before installation.
Can this lens assembly be cleaned if it becomes fouled?
Yes, the optical surface can be cleaned using standard lens cleaning procedures. To maintain optimal flame detection, it is recommended to inspect the lens regularly as part of your preventative maintenance schedule.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
