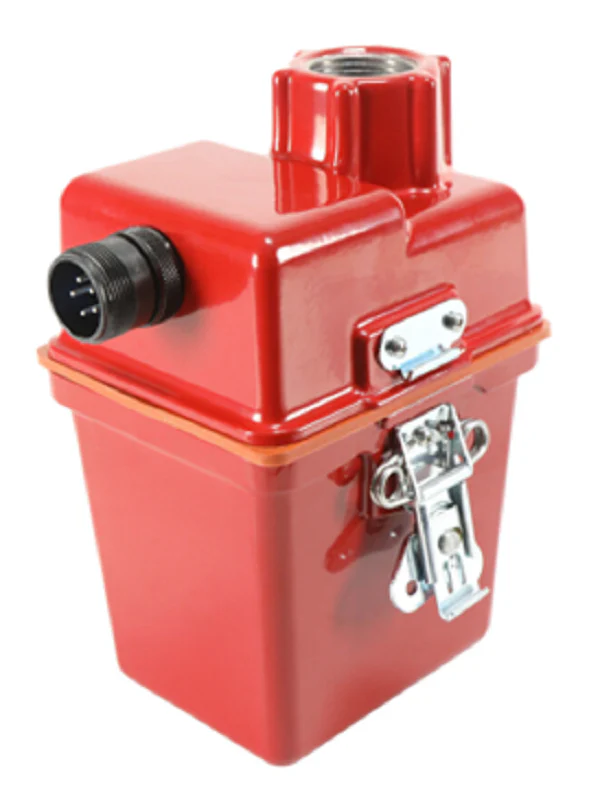

Fireye C9707A1023 Scanner
The Fireye C9707A1023 Coded UV Scanner is a high-precision flame detector designed for industrial and commercial burner applications. Engineered to function exclusively with Fireye BurnerLogix and Flame-Monitor flame safeguard controls, this scanner utilizes specialized coded ultraviolet sensing technology to differentiate between the burner flame and background radiation or adjacent burner signals. This effectively eliminates nuisance shutdowns caused by "refractory glow" or flame interference in multi-burner configurations. The C9707A1023 features a standard 1/2-inch NPT mounting connection and is rated for a NEMA 4X environment, ensuring the internal quartz optics and sensing circuitry remain protected against moisture and dust in demanding boiler rooms.
Technical Specifications and Benefits
- Coded Signal Processing: Designed to prevent false flame signals by syncing the scanner's pulse rate with the compatible Fireye flame safeguard.
- High Sensitivity UV Sensing: Detects ultraviolet radiation in the 185 to 260 nanometer range for rapid flame-out detection.
- Rugged Housing: Features a NEMA 4X / IP66 rated enclosure suitable for extreme industrial environments.
- Simplified Integration: Direct replacement for existing Fireye UV scanners in systems requiring coded signal recognition.
- Optimized Optical Path: High-grade quartz lens ensures maximum signal strength for consistent boiler flame monitoring.
Common Questions
Can I use the C9707A1023 with a standard non-coded amplifier?
No, this scanner is specifically designed for use with coded ultraviolet amplifiers (such as the EUV1). Using it with a standard UV amplifier will result in a failure to prove flame.
What causes a "Flame Signal Low" reading on this scanner?
Common culprits include a dirty lens, improper alignment with the flame envelope, or the scanner reaching its end-of-life. Ensure the quartz window is cleaned with a soft cloth and the sight pipe is clear of obstructions.
How do I handle high-temperature applications?
If the ambient temperature at the scanner exceeds its 200??F (93??C) rating, an insulating nipple or cooling air must be provided to the sight pipe to prevent damage to the internal sensor.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $10,625.27
-65%$10,625.27
$3,718.84Fireye C9707A1023 Scanner
