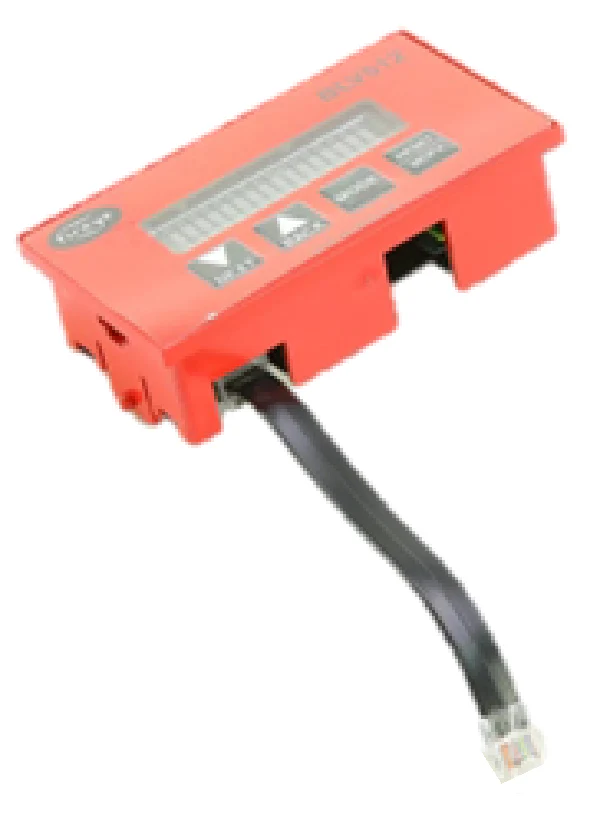

Fireye BLV512 VFD Display
The Fireye BLV512 VFD Display is a critical operator interface designed for Fireye BurnerLogiX microprocessor-based burner management systems. Precision-engineered for high visibility in industrial boiler rooms, this vacuum fluorescent display features a 2-line, 16-character format that provides full language descriptors of system status, ignition sequences, and flame signal strength. Unlike standard LCDs, the VFD technology in the Fireye BLV512 ensures superior readability in low-light environments and a wide operating temperature range from -40??F to 140??F, preventing screen "ghosting" or failure in extreme boiler house conditions.
This BurnerLogiX keypad display is essential for technicians during commissioning and service, as it is the only way to modify factory default parameters within the programmer module. It allows for exhaustive diagnostics, including the cataloging of the last ten lockout events with timestamps of burner hours and cycles. The module features an integrated tactile keypad for navigating the sub-menus of fireye flame safeguard controls and can be mounted directly to the chassis or remotely using a NEMA 4X rated kit for panel-front access.
Key Benefits for Technicians
- Enhanced Cold-Weather Performance: The OLED/VFD construction maintains refresh rates down to -40??F, far exceeding standard liquid crystal alternatives.
- Full System Configuration: Required for accessing the Program Setup menu to adjust purge timings and interlock settings on BurnerLogiX chassis.
- Detailed Fault Logging: Accurately troubleshoot safety shutdowns by reviewing the lockout history and flame signal averages directly from the keypad.
- Flexible Mounting: Includes a 4-inch connection cable; compatible with 129-178-4 (4ft) and 129-178-8 (8ft) kits for remote NEMA 4X industrial installations.
- Comprehensive Monitoring: Real-time display of burner operating hours, cycle counts, and Modbus communication status.
Common Questions
Is the Fireye BLV512 compatible with all BurnerLogiX systems?
Yes, it is designed for use with all YB110 and YB230 series chassis and YP-series programmer modules. It serves as a superior alternative to the BLL510 LCD version in harsh temperature environments.
Can I change purge times without this display?
No. The Fireye BLV512 or a similar keypad/display module is mandatory for modifying any factory default parameters stored in the programmer module.
What is the difference between the BLV512 and the BLL510?
The BLV512 utilizes Vacuum Fluorescent (VFD/OLED) technology for high brightness and a lower temperature rating (-40??F), whereas the BLL510 is a standard LCD rated for -4??F.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
