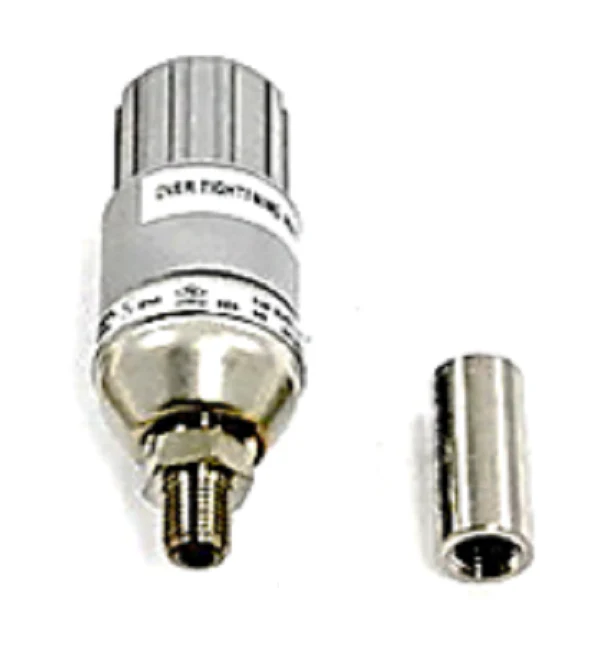

Fireye BLPS-15 Pressure Transducer
The Fireye BLPS-15 Pressure Transducer is a solid-state sensing solution engineered specifically for high-accuracy steam pressure monitoring in industrial boiler applications. Designed for seamless integration with the BurnerLogix Burner Management System and PPC4000 Fuel/Air Ratio Controllers, this sensor provides a precise 0-15 psi (0-1030 mb) measurement range. The device utilizes a high-stability 4-20 mA linear output signal to communicate real-time pressure data, ensuring the burner controller can maintain optimal combustion efficiency and safety limits. With a rugged 1/4" NPT male mounting fitting and a dedicated conduit adapter cover, the Fireye BLPS-15 is built for the demanding environments of a commercial mechanical room. It features a superior overpressure rating of 200% and a burst pressure threshold of 800%, protecting the system against unexpected headers spikes. For contractors performing boiler pressure sensor replacement, this unit requires no field calibration, facilitating a rapid "plug-and-play" installation once wired to the 9-30Vdc excitation source provided by the Fireye flame safeguard control.
Key Benefits for Technicians- Factory Calibrated Precision: Delivers a 4-20 mA signal linear with pressure for 0-15 psi ranges without the need for manual scaling or field adjustments.
- Direct Controller Compatibility: UL-approved for use with Fireye PPC4000 and BurnerLogix systems, ensuring full compliance with safety string requirements.
- Rugged Construction: Features a solid-state transducer design with a 1/4" NPT mounting and screw terminal connections for reliable mechanical and electrical termination.
- High Safety Margin: Engineered to withstand 200% overpressure and 800% burst pressure, providing long-term durability in high-cycle steam applications.
How do I wire the Fireye BLPS-15 to a BurnerLogix system?
The unit features clearly labeled screw terminals (EXC, OUT, COM) designed for a 9-30Vdc loop. Use shielded twisted pair wiring to prevent EMI interference with the 4-20 mA signal, and ensure the conduit adapter cover is secured to maintain environmental ratings.
Can this transducer be used on high-pressure steam headers?
The BLPS-15 is specifically rated for 0-15 psi. For applications exceeding 15 psi, such as high-pressure process steam, you must select the appropriate range (e.g., BLPS-30 or BLPS-200) to ensure the monitored pressure falls within 40-70% of the sensor's upper range for maximum accuracy.
Does the BLPS-15 require a siphon (pigtail) for installation?
Yes, when used in steam service, it is professional best practice to install the sensor on a water-filled siphon to protect the solid-state sensing element from direct high-temperature steam contact, staying within the -40??F to 185??F operating range.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $613.22
-65%$613.22
$214.63Fireye BLPS-15 Pressure Transducer
The Fireye BLPS-15 Pressure Transducer is a solid-state sensing solution engineered specifically for high-accuracy steam pressure monitoring in industrial boiler applications. Designed for seamless integration with the BurnerLogix Burner Management System and PPC4000 Fuel/Air Ratio Controllers, this sensor provides a precise 0-15 psi (0-1030 mb) measurement range. The device utilizes a high-stability 4-20 mA linear output signal to communicate real-time pressure data, ensuring the burner controller can maintain optimal combustion efficiency and safety limits. With a rugged 1/4" NPT male mounting fitting and a dedicated conduit adapter cover, the Fireye BLPS-15 is built for the demanding environments of a commercial mechanical room. It features a superior overpressure rating of 200% and a burst pressure threshold of 800%, protecting the system against unexpected headers spikes. For contractors performing boiler pressure sensor replacement, this unit requires no field calibration, facilitating a rapid "plug-and-play" installation once wired to the 9-30Vdc excitation source provided by the Fireye flame safeguard control.
Key Benefits for Technicians- Factory Calibrated Precision: Delivers a 4-20 mA signal linear with pressure for 0-15 psi ranges without the need for manual scaling or field adjustments.
- Direct Controller Compatibility: UL-approved for use with Fireye PPC4000 and BurnerLogix systems, ensuring full compliance with safety string requirements.
- Rugged Construction: Features a solid-state transducer design with a 1/4" NPT mounting and screw terminal connections for reliable mechanical and electrical termination.
- High Safety Margin: Engineered to withstand 200% overpressure and 800% burst pressure, providing long-term durability in high-cycle steam applications.
How do I wire the Fireye BLPS-15 to a BurnerLogix system?
The unit features clearly labeled screw terminals (EXC, OUT, COM) designed for a 9-30Vdc loop. Use shielded twisted pair wiring to prevent EMI interference with the 4-20 mA signal, and ensure the conduit adapter cover is secured to maintain environmental ratings.
Can this transducer be used on high-pressure steam headers?
The BLPS-15 is specifically rated for 0-15 psi. For applications exceeding 15 psi, such as high-pressure process steam, you must select the appropriate range (e.g., BLPS-30 or BLPS-200) to ensure the monitored pressure falls within 40-70% of the sensor's upper range for maximum accuracy.
Does the BLPS-15 require a siphon (pigtail) for installation?
Yes, when used in steam service, it is professional best practice to install the sensor on a water-filled siphon to protect the solid-state sensing element from direct high-temperature steam contact, staying within the -40??F to 185??F operating range.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
