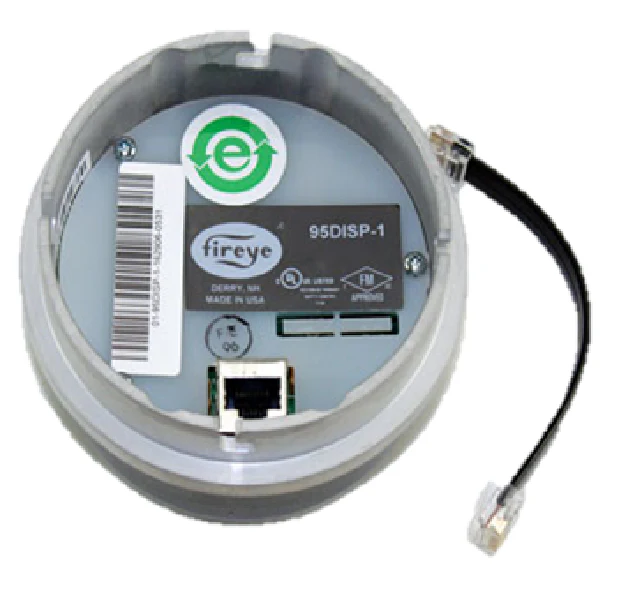

Fireye 95DISP-1 Display Module
The Fireye 95DISP-1 Display Module is an essential OEM component for field-level interaction with Fireye burner management systems, providing critical diagnostic data and configuration capabilities. Engineered for the rigors of industrial combustion control, this flame monitoring module allows technicians to monitor signal strength, flame status, and system parameters in real-time. Built to interface seamlessly with integrated flame scanners, the 95DISP-1 supports the precise tuning of infrared and ultraviolet sensors, ensuring optimal combustion efficiency and safety. With a rugged design rated for NEMA Type 4X/IP66 environments, this display remains operational in extreme conditions ranging from -40??F to +150??F. Whether you are performing routine maintenance or a full system commissioning, this industrial combustion control tool facilitates wireless commissioning through compatible handheld devices, reducing downtime and streamlining the calibration of dual-sensor setups in power plants and refineries.
Key Benefits for Technicians:
- Superior Environmental Protection: NEMA 4X and IP66 rated housing ensures internal electronics are protected from dust, water ingress, and corrosive substances typical in industrial burner management.
- Broad Temperature Range: Reliable operation in harsh ambient temperatures, maintaining display clarity and logic performance from -40??C to +65??C.
- Advanced Signal Feedback: Provides direct access to 4-20 mA output data and relay status for SPDT flame and SPST fault relays, simplifying troubleshooting.
- HazLoc Compliance: Qualified for use in Class I, Division 2 and Class II, Division 2 hazardous locations, making it a standard for OEM Fireye replacement in critical infrastructure.
- Seamless Integration: Designed for 24 VDC systems (+10%/-15%) with 8-pin and 12-pin quick-disconnect screw terminals for fast field wiring and replacement.
Common Questions & Technical Support:
How do I verify the current flame signal via the 95DISP-1?
The display provides a direct numerical readout of the flame signal strength, which is vital for aligning the scanner head and setting the discrimination thresholds for flame safeguard systems.
Is the 95DISP-1 compatible with all InSight series scanners?
This module is specifically engineered for the Fireye InSight series, including models utilizing dual IR/UV detection. Always verify your specific scanner's firmware and power requirements (0.35 A at 24 VDC) before installation.
What maintenance is required for the display housing?
In high-temperature or high-dust environments, ensure the purge air supply is maintained at 4 SCFM to 15 SCFM of clean, dry air to prevent heat soak and keep the viewing port clear of contaminants.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $1,142.63
-65%$1,142.63
$399.92Fireye 95DISP-1 Display Module
