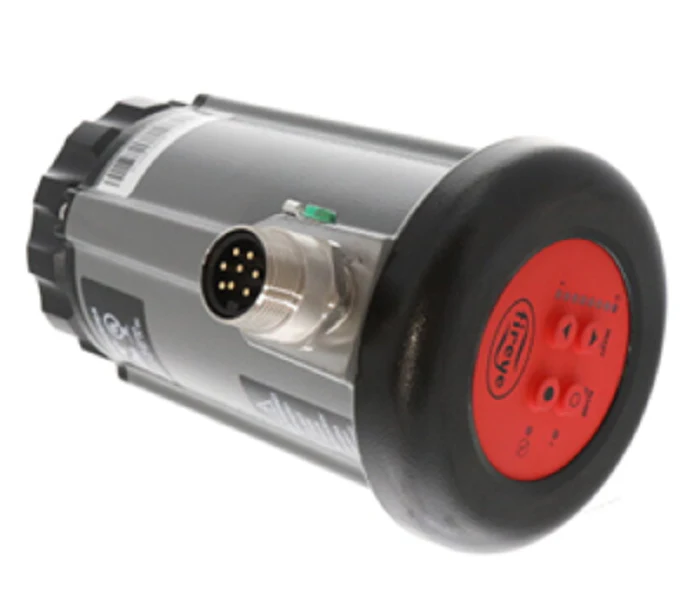

Fireye 85UVF4A-1QDWR Scanner
The Fireye 85UVF4A-1QDWR is a robust, microprocessor-based Phoenix II series integrated UV flame scanner engineered for high-demand industrial burner management. This solid-state flame detection device features a selectable FFRT (Flame Failure Response Time) and an integrated flame relay, eliminating the need for a separate external amplifier. The ultraviolet sensor specifically targets the modulated flicker of gas and light oil flames, providing precise monitoring even in high-temperature environments ranging from -40??F to 150??F. Designed with a Water-Resistant (WR) cast aluminum housing and an 8-pin quick-disconnect (QD) fitting, it ensures reliable 4-20mA analog output signaling for real-time flame strength diagnostics. Contractors can easily integrate this unit with direct coupled amplifiers such as the EDC1, EDC2, or BurnerLogix YB series for seamless system compatibility.
Key Benefits- Selectable FFRT: Allows technicians to field-adjust the flame failure response time to match specific safety and operational requirements.
- Internal Flame Relay: Features adjustable ON/OFF thresholds to streamline installation by removing the requirement for remote flame switches.
- High-Performance UV Sensing: Utilizes advanced sensor technology to distinguish between target flames and background radiation in complex combustion zones.
- Quick Disconnect Connection: Facilitates rapid replacement and secure electrical interfacing via standard 8-pin QD cables.
- NEMA 4X / IP66 Rating: The rugged, polyester-coated housing provides protection against moisture and debris in petrochemical and power plant applications.
What is the required power supply for this scanner?
The unit operates on a 24Vdc nominal supply. Connecting this device to 24Vac or 120Vac will cause immediate damage to the internal electronics.
Which mounting flanges are compatible with the 85UVF4A-1QDWR?
This model is designed for use with the 60-2692 or 60-2919 mounting flanges, featuring an integral heat-insulating insert to protect the sensor from thermal conduction.
Can I use this scanner for detecting heavy oil flames?
While the 85UVF4A is optimized for UV emissions from gas and light oil, applications involving heavy coal or oil flames often require the IR (infrared) variant to ensure consistent flicker detection through dense combustion byproducts.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $2,372.99
-65%$2,372.99
$830.55Fireye 85UVF4A-1QDWR Scanner
The Fireye 85UVF4A-1QDWR is a robust, microprocessor-based Phoenix II series integrated UV flame scanner engineered for high-demand industrial burner management. This solid-state flame detection device features a selectable FFRT (Flame Failure Response Time) and an integrated flame relay, eliminating the need for a separate external amplifier. The ultraviolet sensor specifically targets the modulated flicker of gas and light oil flames, providing precise monitoring even in high-temperature environments ranging from -40??F to 150??F. Designed with a Water-Resistant (WR) cast aluminum housing and an 8-pin quick-disconnect (QD) fitting, it ensures reliable 4-20mA analog output signaling for real-time flame strength diagnostics. Contractors can easily integrate this unit with direct coupled amplifiers such as the EDC1, EDC2, or BurnerLogix YB series for seamless system compatibility.
Key Benefits- Selectable FFRT: Allows technicians to field-adjust the flame failure response time to match specific safety and operational requirements.
- Internal Flame Relay: Features adjustable ON/OFF thresholds to streamline installation by removing the requirement for remote flame switches.
- High-Performance UV Sensing: Utilizes advanced sensor technology to distinguish between target flames and background radiation in complex combustion zones.
- Quick Disconnect Connection: Facilitates rapid replacement and secure electrical interfacing via standard 8-pin QD cables.
- NEMA 4X / IP66 Rating: The rugged, polyester-coated housing provides protection against moisture and debris in petrochemical and power plant applications.
What is the required power supply for this scanner?
The unit operates on a 24Vdc nominal supply. Connecting this device to 24Vac or 120Vac will cause immediate damage to the internal electronics.
Which mounting flanges are compatible with the 85UVF4A-1QDWR?
This model is designed for use with the 60-2692 or 60-2919 mounting flanges, featuring an integral heat-insulating insert to protect the sensor from thermal conduction.
Can I use this scanner for detecting heavy oil flames?
While the 85UVF4A is optimized for UV emissions from gas and light oil, applications involving heavy coal or oil flames often require the IR (infrared) variant to ensure consistent flicker detection through dense combustion byproducts.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
