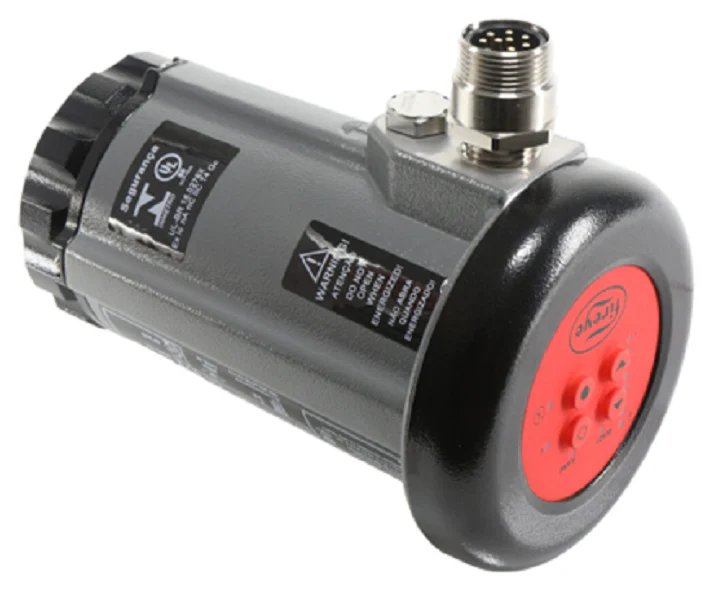

Fireye 85UVF1A-1QDK3 Scanner
The Fireye 85UVF1A-1QDK3 is a high-performance Phoenix Series 2 integrated flame scanner designed for industrial single-burner or multi-burner applications. Utilizing advanced ultraviolet (UV) detection technology, this microprocessor-based unit monitors flame flicker modulations across a wide frequency spectrum. The integrated design incorporates an internal flame relay, eliminating the need for a separate remote amplifier or flame switch, which simplifies cabinet wiring and reduces potential failure points. This specific 85UVF1A-1QDK3 model features an advanced K3 optical filter, extending its spectral sensitivity up to 500nm, making it highly effective for specialized combustion environments like duct burners, low NOx systems, and industrial waste gas units.
Engineered for technical reliability, the scanner includes selectable FFRT (Flame Failure Response Time) and a simplified 8-pin quick disconnect (QD) electrical interface. With self-checking internal diagnostics and a 4-20mA analog output for real-time flame strength monitoring, it provides the precise feedback necessary for complex burner management systems. The unit is housed in a rugged, cast aluminum enclosure rated for IP66, ensuring durability in demanding refinery or power plant environments.
Key Benefits:- Integrated Flame Relay: Internal SPST (N.O.) flame relay and SPST (N.C.) fault relay reduce the need for external hardware.
- K3 Optical Filter: Enhanced sensitivity range (310nm to 500nm) optimized for steel plant and refinery applications.
- Quick Disconnect Design: The 1QDK3 configuration allows for rapid installation and service without disturbing conduit connections.
- Selectable FFRT: Flexible response timing allows the technician to tune the system for specific safety and operational requirements.
- Real-Time Diagnostics: On-board LEDs provide instant status on flame signal strength and scanner health for more efficient troubleshooting.
- What fuel types is the 85UVF1A-1QDK3 compatible with? It is ideally suited for gaseous fuels, light oils, and specialized waste gases.
- Do I need to replace my existing mounting flange if upgrading? Yes, when replacing an older generation scanner like the 85UVF1-1EX, the 60-2919-1 mounting flange must also be installed.
- Can this scanner be used in hazardous locations? This QD model is suitable for Class I, Division 2 areas when used with the appropriate 59-546-x series cable.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $2,372.99
-65%$2,372.99
$830.55Fireye 85UVF1A-1QDK3 Scanner
The Fireye 85UVF1A-1QDK3 is a high-performance Phoenix Series 2 integrated flame scanner designed for industrial single-burner or multi-burner applications. Utilizing advanced ultraviolet (UV) detection technology, this microprocessor-based unit monitors flame flicker modulations across a wide frequency spectrum. The integrated design incorporates an internal flame relay, eliminating the need for a separate remote amplifier or flame switch, which simplifies cabinet wiring and reduces potential failure points. This specific 85UVF1A-1QDK3 model features an advanced K3 optical filter, extending its spectral sensitivity up to 500nm, making it highly effective for specialized combustion environments like duct burners, low NOx systems, and industrial waste gas units.
Engineered for technical reliability, the scanner includes selectable FFRT (Flame Failure Response Time) and a simplified 8-pin quick disconnect (QD) electrical interface. With self-checking internal diagnostics and a 4-20mA analog output for real-time flame strength monitoring, it provides the precise feedback necessary for complex burner management systems. The unit is housed in a rugged, cast aluminum enclosure rated for IP66, ensuring durability in demanding refinery or power plant environments.
Key Benefits:- Integrated Flame Relay: Internal SPST (N.O.) flame relay and SPST (N.C.) fault relay reduce the need for external hardware.
- K3 Optical Filter: Enhanced sensitivity range (310nm to 500nm) optimized for steel plant and refinery applications.
- Quick Disconnect Design: The 1QDK3 configuration allows for rapid installation and service without disturbing conduit connections.
- Selectable FFRT: Flexible response timing allows the technician to tune the system for specific safety and operational requirements.
- Real-Time Diagnostics: On-board LEDs provide instant status on flame signal strength and scanner health for more efficient troubleshooting.
- What fuel types is the 85UVF1A-1QDK3 compatible with? It is ideally suited for gaseous fuels, light oils, and specialized waste gases.
- Do I need to replace my existing mounting flange if upgrading? Yes, when replacing an older generation scanner like the 85UVF1-1EX, the 60-2919-1 mounting flange must also be installed.
- Can this scanner be used in hazardous locations? This QD model is suitable for Class I, Division 2 areas when used with the appropriate 59-546-x series cable.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
