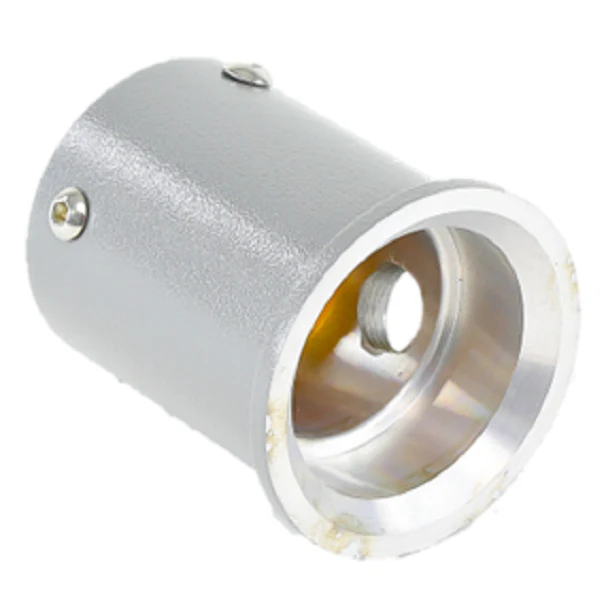

Fireye 60-2919-1 Mounting Flange
The Fireye 60-2919-1 Mounting Flange is a critical industrial component designed for the secure installation of integrated flame scanners on high-output burners and utility boilers. Engineered for a precise fit with Fireye Phoenix Series II and InSight scanner models, this 1 inch NPT mounting flange provides a stable mechanical interface between the sight pipe and the scanner housing. To protect sensitive electronic components from extreme ambient conditions and thermal conduction, this flange features an integral heat-insulating insert. This design effectively prevents heat transfer from the burner housing, which is essential for maintaining the operational integrity of flame safeguard systems and preventing premature sensor failure. The unit also includes a 3/8" NPT female cooling air connection, allowing technicians to introduce purge air to keep the scanner lens clear of debris and maintain optimal operating temperatures. Built with a durable cast aluminum body and a gray polyester powder coat finish, this flange is a reliable choice for field contractors and facility managers seeking to optimize combustion monitoring hardware and reduce maintenance downtime.
Key Benefits- Thermal Protection: The integral insulator prevents conductive heat transfer, protecting the internal electronics of your flame scanner.
- Cooling Capability: Features a dedicated 3/8" NPT port for purge air, ensuring the scanner sight path remains clear of soot or moisture.
- Secure Mounting: The 1" NPT female pipe mount ensures a rigid, vibration-resistant connection for consistent flame signal detection.
- Industrial Durability: Cast aluminum construction with a polyester powder coat provides excellent resistance to harsh boiler room environments.
Which scanners are compatible with this flange?
The 60-2919-1 is specifically designed for use with Fireye Phoenix (85UVF/85IRF) and InSight II integrated flame scanners.
Do I need a separate heat insulating nipple with this part?
No, this model includes an integral female thread insulating insert, eliminating the need for an external heat-insulating nipple during installation.
What is the purpose of the 3/8" NPT side port?
This port is intended for a cooling air or purge air connection, which is vital for preventing the accumulation of combustion byproducts on the scanner lens.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
